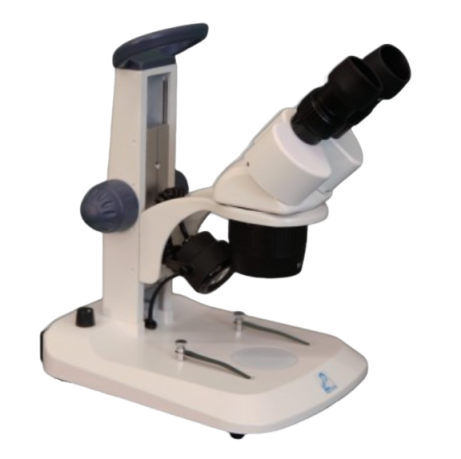

VIEWING HEADS
Binocular or Trinocular 45° inclined tubes Two diopter adjustments Interpupillary distance adjustable between 55 mm and 75 mm All optical parts are anti-fungus treated
EYEPIECES
Paired WF 10x/20mm eyepieces
TURRET OBJECTIVES
Nosepiece with dual 1x/3x or 2x/4x revolving objectives Magnifications 10x/30x or 20x/40x Field of views 20 mm/6.6 mm or 10 mm/5.0 mm Working distance 100 mm
STAND
Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated.
ILLUMINATION
The 3 W transmitted and incident LED illuminators can be used simultaneously. Both light intensities can be adjusted separately.
FOCUSING ADJUSTMENT
Coarse adjustment with tension control.
