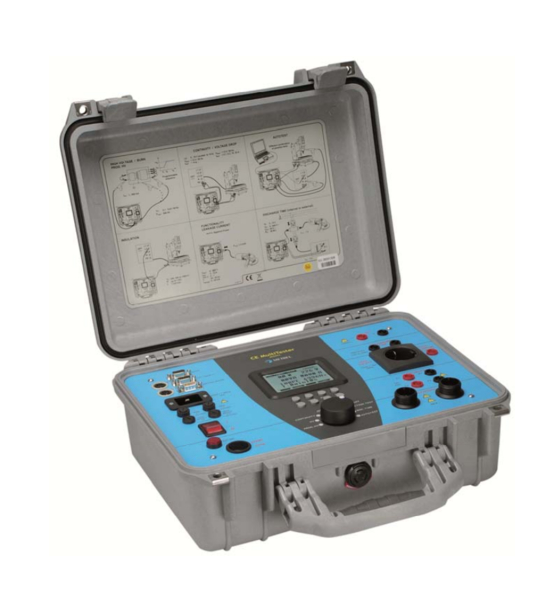

Metrel MI2094 Multitester

Withstanding test (PROG.HV and HV)

Test voltage (AC):

Measuring range/ Resolution/ Accuracy

0.100 kV … 0.999 kV/ 0.001 kV/ ±(2% of reading + 5 digits)

1.000 kV … 5.000 kV/ 0.001 kV/ ±(3% of reading + 5 digits)

Test current

Measuring range/ Resolution/ Accuracy

0.0 mA … 500.0 mA/ 0.1 mA/ ±(5% of reading + 5 digits)

PE continuity

Test current 10 A and 25 A

Measuring range/ Resolution/ Accuracy

0.000 Ω … 0.999 Ω/ 0.001 Ω/ ±(3% of reading + 3 digits)

1.000 Ω … 2.000 Ω/ 0.001 Ω/ ±(3% of reading + 10 digits)

2.001 Ω … 9.999 Ω/ 0.001 Ω/ indicative

Test current 100 mA

Measuring range/ Resolution/ Accuracy

0.00 Ω … 9.99 Ω/ 0.01 Ω/ ±(5% of reading + 12 digits)

10.0 Ω … 100.0 Ω/ 0.1 Ω/ ±(5% of reading + 6 digits)

Test current 200 mA

Measuring range/ Resolution/ Accuracy

0.00 Ω … 9.99 Ω/ 0.01 Ω/ ±(5% of reading + 6 digits)

10.0 Ω … 100.0 Ω/ 0.1 Ω/ ±(5% of reading + 6 digits)

Insulation resistance

Measuring range/ Resolution/ Accuracy

0.000 MΩ … 1.999 MΩ/ 0.001 MΩ/ ±(5% of reading + 10 digits)

2.000 MΩ … 199.9 MΩ/ 0.001 MΩ, 0.01 MΩ, 0.1 MΩ/ ±(3% of reading + 3 digits)

200 MΩ … 999 MΩ/ 1 MΩ/ ±(10% of reading + 10 digits)

Differential leakage current

Measuring range/ Resolution/ Accuracy

0.00 mA … 3.99 mA/ 0.01 mA/ ±(5% of reading + 3 digits)

4.0 mA … 20.0 mA/ 0.1 mA/ ±(5% of reading + 3 digits)

Substitute leakage current

Measuring range/ Resolution/ Accuracy

0.00 mA … 20.00 mA/ 0.01 mA/ ±(5% of reading + 3 digits)

Touch leakage current

Measuring range/ Resolution/ Accuracy

0.00 mA … 2.00 mA/ 0.01 mA/ ±(5% of reading + 3 digits)

Power supply: 115 V / 230 V, 50 Hz / 60 Hz

Overvoltage category: CAT III / 300 V; CAT II / 600 V

Protection class: I

COM port: RS232 and USB

Dimensions: 410 x 175 × 370 mm

Weight: 13.5 kg
