Direct access to our certified experts

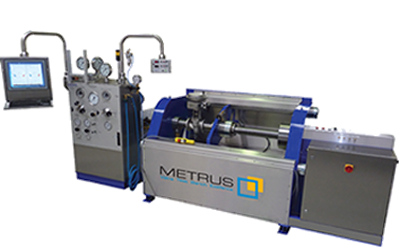

Max. clamping force: 220 tons
Clamping range: DN100- DN300 / 4″-12″
Stainless steel control cabinet
Anodized, acid proof front panel
METRUS precision valve technology
Shell test with water up to 600 bar
Seat leakage test with air up to 9 bar
Actuator supply: air up to 6 bar
Clamping via automatic seal heads
Air lock free filling
Closed water circuit
Dual chamber SS tank
Stainless steel tubing PN600
Gauge quick connection
Bubble counter (DIN/EN, ASME and API)
Adapted high pressure pump
Overload protection
Options:
Testing AB – the third connection
External testing adaptor
Bi directional testing
High pressure air/gas inlet
High pressure water up to 1600 bar
Pneumatic sequential control
Visual seat inspection
Flow meter cascade
Gauge turret
CRS – Computer Registration System
Panel PC on swivel arm
Safety pressure limitation
Safety doors
ESD – Emergency Shut Down
