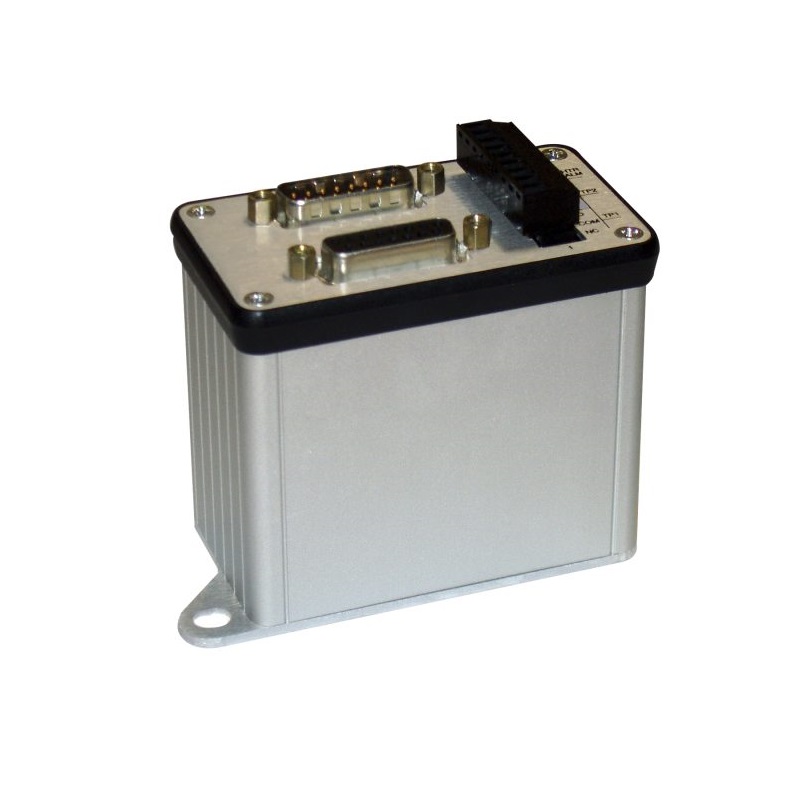

Channels: 1
Output Power: 24 Volts @ 1 Amp
Output Signal: 0 - 10 VDC into 10 kOhm load, and 4-20 mA. Both outputs linear with pressure.
Interface: RS485/RS232
Connectors: System connector: 15-pin male D-subminiature
Trip relays: 9 - post terminal strip
Baratron: 15-pin female D-subminiature receptacle
Memory: Non - volatile memory
Resolution: 20 ft./2 ft.
Dimensions: 4.07 x 1.69 x 3.15 in. (103.4 x 42.9 x 80.0 mm) (width x depth x height)
For specific range please check the attachment below!
