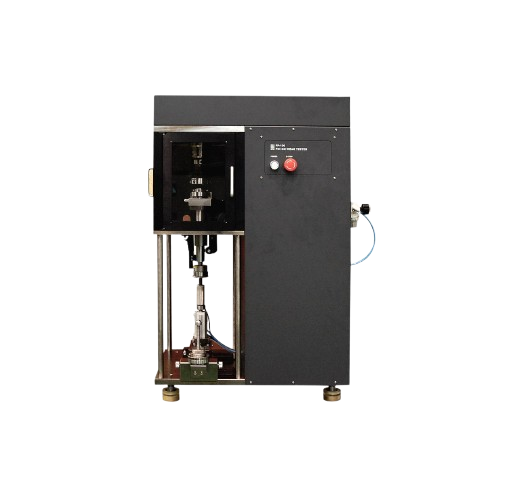

MTDI FP-100 High-temperature high-speed friction tester (100kN,0.001mm/min ~ 3,000mm/min)

Size (mm): 3,000W x 900D x 1,700H

Everyone: 220VAC, 3phase, 8Kw / 380VAC, 3phase, 10Kw

Test speed: 0.001mm/min ~ 3,000mm/min

Test distance: Vertical: 100mm / Horizontal: 600mm

Frictional load: Max. 100kN

Temperature: Furnace: Max/ 1,100℃ / Tip: Max. 950℃

Sampling Rate: Max. 20ks/s

Utility: Water, Air

Horizontal Motor: 5kW Servo Motor

Vertical Motor: 2.2kW Servo Motor

Special Features:

Dual load application method

Lever ratio adjustable (1:1, 2:1)

Measurement of wear using a linear scale

Precise control using servo motors

Setting various test conditions such as pressure, temperature, speed, frequency, and time
