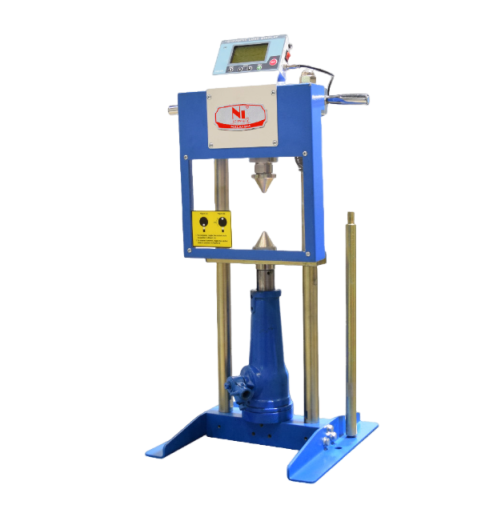

Max. Capacity: 50 kN x 0.001 kN Sensitivity
Max. Specimen Test: 90 mm Dia.
Power: 1.8 Ah Rechargeable with AC 220 V
Result Storage: 50 Test Results
Accuracy & Repeatability: ≤1.0 % F.S
Sensor-Rated Carrying Capacity: 50 kN
Piston Diameter: 32 dia. mm
Force Measurement Error: ≤1% F.S
Working Temperature: -20 ~ 45°C
Product Dimension: 450(L) x 350(W) x 800(H) mm
Packing Dimension: 500(L) x 420(W) x 860(H) mm
Approx. Weight: 34 kg
Packing Weight: 47 kg
Unit Consists Of:
50 kN S Type Load Cell c/w Cable - 1 Unit
Digital Load Display - 1 Unit
Measuring Guide Plate - 1 no.
Conical Cone Set (Top & Bottom) - 1 Set.
Safety Cover - 1 Pc.
Power Charger - 1 no.
1 Copy of Manual Instruction
