Characteristics

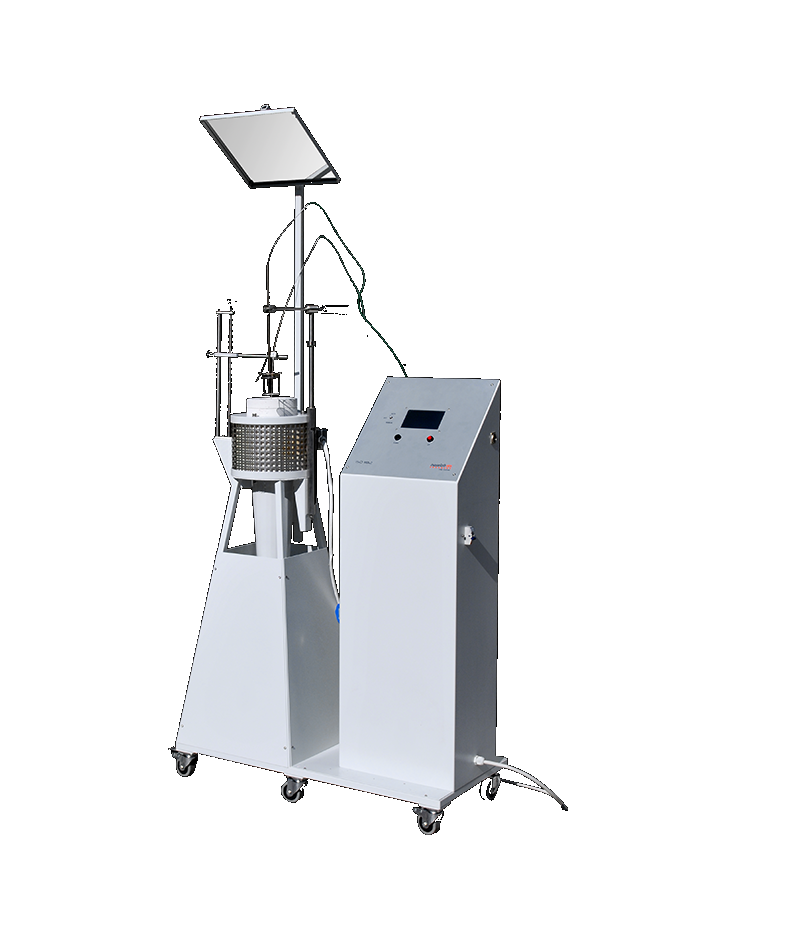

Tubular furnace mounted on a metal frame on wheels for easy positioning
Oven in refractory tube heated by electric resistances, thermally insulated with 75 mm Ø alumina
Diffuser cone insulated with fiberglass 0.04 W/mK
Self-centering specimen positioning system with manual movement and shock absorber
Type K thermocouples: Tf (T1–T2), Tc–Ts
Thermal sensor for calibration with copper cylinder (10 dia × 15 mm)
Contact thermocouple and support
Sample basket in nickel-chromo
Mirror 300 mm on the side at 30° for viewing the test
Control unit system with digital display for temperature control and stabilization at 750 °C
Regulation of the oven voltage during the cycle (1.5 kVA), alarm signal for exceeding the temperature and USB output for connection to PC (optional)
Data acquisition software with Save, Recall, Data Management, Graph, Stability, Numerical Values, Report functions
The test report describes the general information, the initial, maximum and final temperature, the time required to increase the temperature, the total combustion time
Generali
Tension 230 V
Dimensions 360 × 300 × 1800 h (mm)
Dimensions 360 × 300 × 1200 h (mm)
Weight 35 kg
