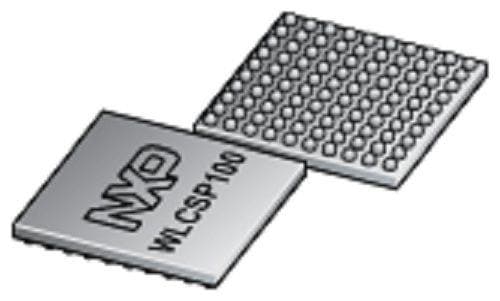

NXP LPC1768UKZ MCUs Scalable Mainstream 32-bit Microcontroller based on ARM Cortex-M3

Core: ARM Cortex M3

Unit Weight: 18.281 mg

Data RAM Size: 64 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

DAC Resolution: 10 bit

Data Bus Width: 32 bit

Interface Type: CAN, I2C, I2S, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 70 I/O

Watchdog Timers: Watchdog Timer

Program Memory Size: 512 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.4 V

Maximum Clock Frequency: 100 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
