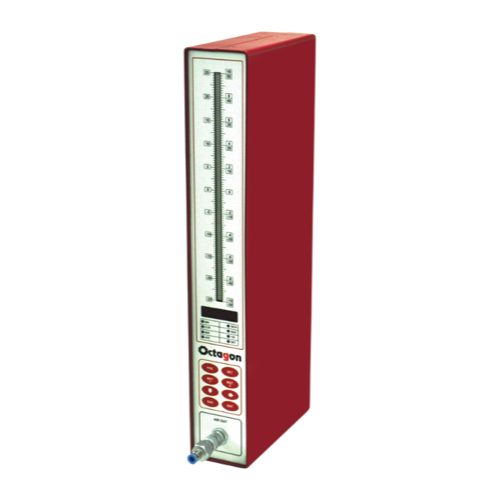

Input Sensor: Piezo Air Sensor
Input Channels: 1
Measurement: Static/Dynamic Reading
Readout: Absolute/Comparative Measurement
Bar Graph: Single Tri-Colour LED for Component Status (Red - Reject, Green - OK, Yellow - Rework)
Bar Graph Ranges: 10, 25, 100, 250, 500
Sound Signal: Buzzer for Out-of-Tolerance Values
Modes: Current, Max, Min, TIR (ID/OD)
Calibration: 2-point Auto Calibration
PC Interface: RS-232
Display: 6-Digit, 7-Segment
Footswitch: Available
Scale: mm, inch
Resolution: F1, F2, F3, F4
Measuring Range:
0.1 μm: -9.9999 mm to 99.9999 mm
1 μm: -99.999 mm to 999.999 mm
