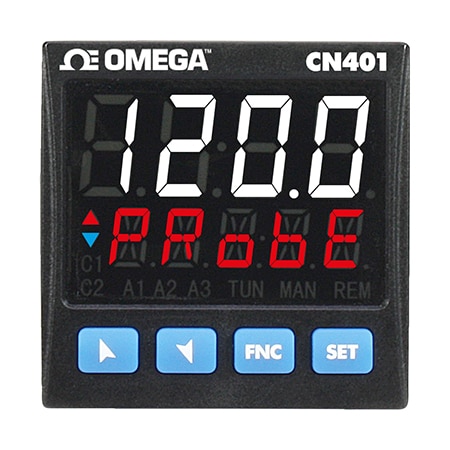

OMEGA CN401-111445 1/16 DIN Single/Dual Inputs PID Controller Programmable by NFC/RFID (4 Digit LED, None)

APP: NFC Programming via APP Direct Link for Android smartphones

Width: 48 mm

Height: 48 mm

Length: 105 mm

Tuning: Autotune, Manual

Weight: 185 g

Accuracy: ± 15 %

Input Type: Thermocouple, RTD, Thermistor, mA, mV, Digital I/O, Current Transformer

Soft-Start: Rising gradient expressed as Degrees / Hour or fixed output percentage

Alarm modes: Absolute or Threshold, Adjustable, Band, High, High/Low, Loop Break Alarm, Low, Manual reset

Form factor: 1/16 DIN

Display Type: 4 Digit LED

Double P.I.D: Heating / Cooling P.I.D

Output Detail: 3 Relays, 2 SSRs, 1 Analog;2/3 Relays Outputs : Relay 2 A - 250 V AC resistive change 2 SSR Outputs : 12 / 24 V DC - 30 mA max 1/2 Analog : Selection 4 to 20 mA (40000 points ± 0,2% F.S.) or 0 to 10 VDC (40000 points ± 0,2% F.S.) for command or retransmission PV / SPV

Output Signal: Current, Voltage

Sampling Rate: 470 Hz (470 updates/second)

Control Output: 2 SSR Relay, SPDT Relay, 2 SPST Relay, 2 Analogue Output

Data Interface: None

Supply Voltage: 24 to 230 Vac/Vdc

Data protection: Access by password, Alarm setpoint, Lock of control

Measurement Type: Current, Resistance, Temperature, Voltage

Number of Inputs: 1

Open/Close logic: Open / Close logic for motorized valves

Display Type Note: 4 digits 0.5” white + 4 digits 0.3” red

Enclosure Ratings: IP20, IP65

Relative Humidity: 35 to 95 RH%

Supply Power Note: 50/60 Hz

Supply Power Type: AC/DC

Control Algorithms: On/Off Control, PID Control

Enclosure Material: Polycarbonate

Galvanic Isolation: 2.5 KV

Sampling Rate Note: Programmable up to 2.1 ms (frequency up to 470 Hz)

Auto/Manual function: Output percentage command also with automatic change in case of sensor failure

Quick Set-up Options: Memory Card, software LABSOFTVIEW, or EASY-UP

Additional Features 1: NFC, 1/2 D.I, CT Input

Programmable Functions: Pre-programmed cycle

Current Transformer Input: Selection One C.T. 50 mA, 800 μs - 4096 points

Number of Control Outputs: 7

Operating Temperature, Max: 45 °C

Operating Temperature, Min: 0 °C
