Height: 0 in

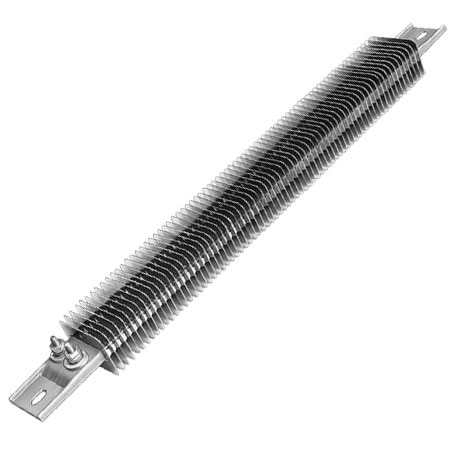

Form factor: Finned
Termination: Terminals parallel on one side
Thread Size: 10-32
Thread Type: UNF
Applications: Food and Beverage, Food Processing Equipment, Heating Equipment
Current, Max: 25 A
Heater Power: 1100 W
Voltage Note: 480 Vac (when applicable)
Voltage, Max: 480 Vac
heater-power: 1100 W
Fins Material: Nickel Plated Steel
Supply Voltage: 120 Vac
supply-voltage: 120 Vac
Power Tolerance: 5%, -10%
Sheath Material: 304 Stainless Steel
Length Tolerance: Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"
Mounting Slot Size: 8 mm x 13 mm
Power Density, Min: 31 W/in²
Resistance Tolerance: 10%, -5%
Width Including Fins: 51 mm
Height Including Fins: 35 mm
Sheath Temperature, Max: 650 °C
Number of Mounting Holes: 2
Slot Size For Secondary Insulating Bushing: 13 mm x 16 mm
