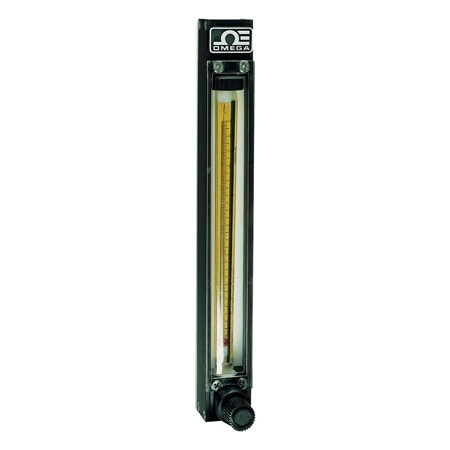

OMEGA FL-3010SA PTFE Variable Area Flow Meters with PTFE Valves (8.3 SCCM, 4.7 SCCM, 1/8 in, NPT Female)

Height: 6.16 in

Accuracy: ± 5 %

Diameter: 5.16 in

Mounting: Panel Mount

Scale Length: 65 mm

Air Flow, Max: 8.3 SCCM

Air Flow, Min: 0.83 SCCM

Repeatability: ± 0.25%

Valve Included: true

Number of Tubes: 1

Water Flow, Max: 4.7 SCCM

Water Flow, Min: 0.47 SCCM

Materials, Wetted: Borosilicate, PCTFE (Polychlorotrifluoroethylene), Perfluoroelastomer, PTFE, Sapphire

Media Compatibility: Air, Water

Mounting Orientation: Panel Mount

Center-to-Center Length: 2.56 in

Operating Pressure, Max: 100 psi

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Process Temperature, Max: 66 °C
