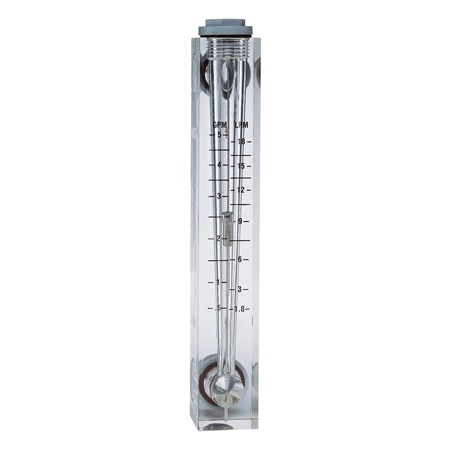

OMEGA FL50005A Panel Mount Variable Area Flow Meters For Water (10 GPM, 3/4 in, NPT Male)
Scale: Direct Read
Width: 0.6875 in
Height: 7.25 in
Length: 5.625 in
Accuracy: ± 5 %
Mounting: Panel Mount
Materials: Polypropylene
Valve Included: true
Water Flow, Max: 10 GPM
Water Flow, Min: 1 GPM
Materials, Wetted: 316 Stainless Steel, FKM, Polypropylene, Stainless Steel
Pressure Drop, Max: 2 psi
Pressure Drop, Min: 1.5 psi
Media Compatibility: Water
Additional Features 1: Dual Scale (GPM/LPM)
Operating Pressure, Max: 120 psi
Process Connection Size: 3/4 in
Process Connection Type: NPT Male
Scale Media Calibration: Water
Process Temperature, Max: 48 °C
