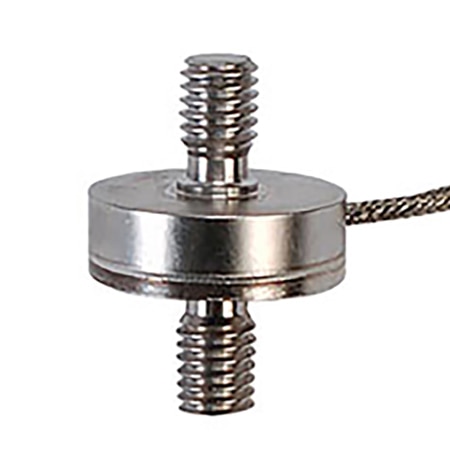

OMEGA LC201-75 0.75 in Diameter, Threaded, Miniature Inline Load Cells (75 lbF)

Height: 0.25 in

End Rod: REC-014F

Accuracy: ± 1 %

Linearity: ± 1.0%

Materials: Stainless Steel

Force Type: Compression, Tension

Hysteresis: ± 1.0%

Cable Length: 5 ft

Overload, Max: 300% FS

Repeatability: ± 1.0%

Safe Overload: 150% FS

Load Cell Type: In-line

Outer Diameter: 0.75 in

Supply Voltage: 10 Vdc

Input Resistance: 360 Ω min

Electrical Output: 2 mV/V

Enclosure Ratings: IP54

Output Resistance: 350 ± 10 Ω

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Load Cell Capacity: 75 lbF

Zero/Balance Error: ± 2%

5-Point Calibration: 0%, 50%, 100%, 50%, 0%

Thermal Span Effect: 0.018% FSO/°C

Thermal Zero Effect: 0.018% FSO/°C

Electrical Connection: Cable

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 121 °C

Operating Temperature, Min: -54 °C
