Width: 0.75 in
Height: 2.5 in
Length: 2 in
Weight: 0.4 lb
End Rod: REC-014M
Linearity: 0.0003
Materials: 17-4 PH Stainless Steel
Force Type: Compression, Tension
Hysteresis: 0.0002
Wire Gauge: 22 AWG
Load Button: LBC-014
Cable Length: 20 ft
Overload, Max: 300% FS
Repeatability: 0.0001
Safe Overload: 150% FS

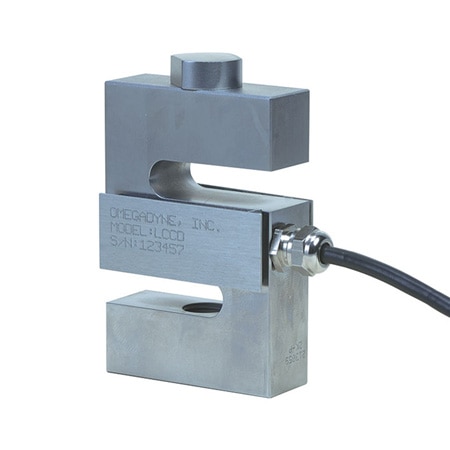

Load Cell Type: S-beam
Supply Voltage: 10 Vdc
Creep in 20 min: 0.0003
Bridge Resistance: 350 Ω
Electrical Output: 3 mV/V
Enclosure Ratings: IP67
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 100 lbF
Zero/Balance Error: 0.01
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: 0.0015% rdg/°C
Thermal Zero Effect: 0.0027% FS/°C
Electrical Connection: Cable
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 66 °C
Process Temperature, Min: -18 °C
Operating Temperature, Max: 66 °C
Operating Temperature, Min: -18 °C
