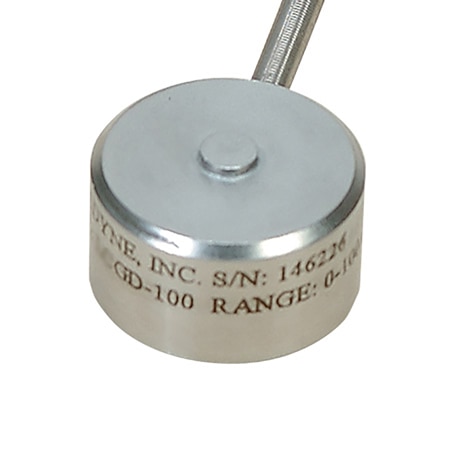

OMEGA LCGD-1K High Accuracy, Miniature Button Compression Load Cell (1000 lbF)

Height: 0.39 in

Linearity: ± 0.25%

Materials: Stainless Steel

Force Type: Compression

Hysteresis: ± 0.20%

Cable Length: 5 ft

Overload, Max: 300% FS

Repeatability: ± 0.10%

Safe Overload: 150% FS

Load Cell Type: Button

Outer Diameter: 1.25 in

Supply Voltage: 10 Vdc

Bridge Resistance: 350 Ω

Electrical Output: 2 mV/V

Enclosure Ratings: IP65

Calibration Option: 5 POINT NIST

Load Cell Capacity: 1000 lbF

Zero/Balance Error: ± 2%

5-Point Calibration: 0%, 50%, 100%, 50%, 0%

Thermal Span Effect: ± 0.018% rdg/°C

Thermal Zero Effect: ± 0.009% FSO/°C

Electrical Connection: Cable

Full Scale Deflection: 0.003 in

Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (-) Output; White: (+) Output

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 121 °C

Operating Temperature, Min: -54 °C
