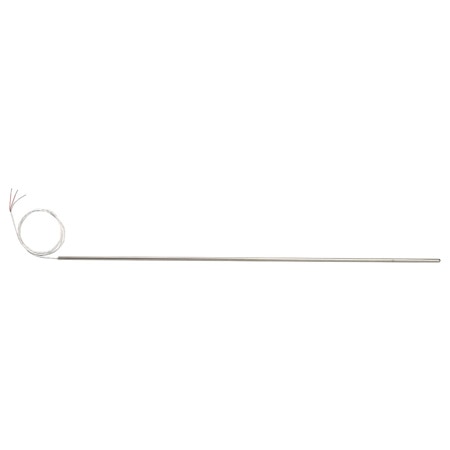

OMEGA PRCTL-2-100-A-1/4-24-40 Cut to Length RTD Probes for Field Adaptation (260 °C, Class A)

Accuracy: Class A

Insulation: PFA

Probe Type: Cut to Length RTD Probes

Wire Gauge: 26 AWG

Sensor Note: All Sensors Supplied with IEC60751/ ASTM E-1137 Color Codes

Cable Length: 40 in

Probe Length: 24 in

Probe Diameter: 0.25 in

Insulation Note: PFA Insulated Lead Wires Standard– Available with SS Overbraid; Available with Glass Insulation

Number of Wires: 3

Sheath Material: 316 Stainless Steel

Nominal Resistance: 100 Ω

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 260 °C

Process Temperature, Min: -50 °C

Nominal Resistance/Curve Note: Available in 100 Ω DIN Platinum Class “A” or Class “B”
