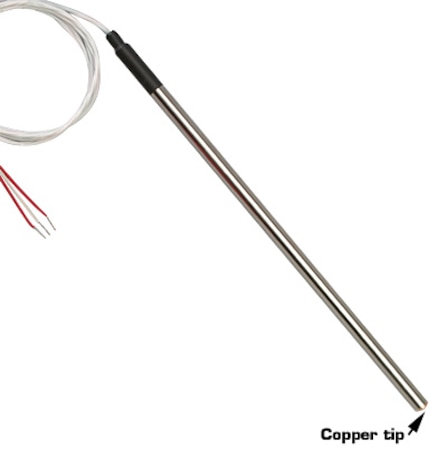

OMEGA PRTFCU-10-2-100-1/4-6-E RTD Probe with Copper Tip and Extension Cable, Class B (Stripped Leads, 260 °C, Class B)

Accuracy: Class B

Wire Type: Stranded

Insulation: PFA

Probe Type: RTD Probes with Copper Tip and Lead Wires

Wire Gauge: 26 AWG

Cable Length: 40 in

Probe Length: 6 in

probe-length: 6 in

Probe Diameter: 0.25 in

Insulation Note: 1 m (40") 3-conductor #26 AWG stranded nickel plated copper, PFA insulated, PFA jacketed.

Number of Wires: 3

Sheath Material: 304 Stainless Steel with Copper Tip

Nominal Resistance: 100 Ω

Electrical Connection: Stripped Leads

Transition Joint Type: N/A

Temperature Coefficient: 0.00385Ω/Ω/°C

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 260 °C

Process Temperature, Min: -50 °C

Temperature Coefficient Note: α=0.00385Ω/Ω/°C

Nominal Resistance/Curve Note: 100 Ω, Class “B” DIN Thin Film Platinum Elements

Datasheet
