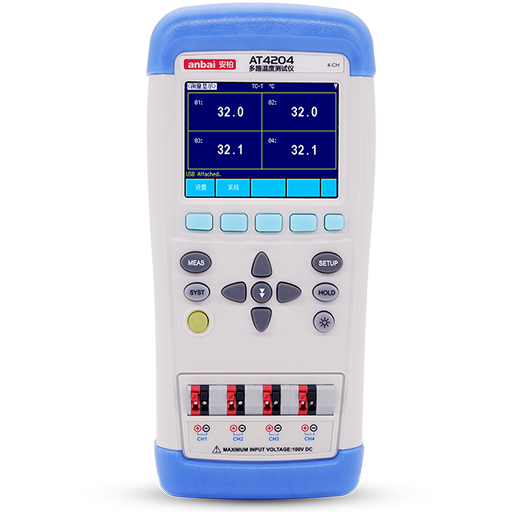

ONMEAS AT4204 Handheld Multi-Channel Temperature Meter (-200°C~1800°C; 4 CH)

Sensor Thermocouple: J/K/T/E/S/N/B/R

Accuracy: ±0.2%±2dgt (Excluding thermocouples)

Test scope: -200°C~1800°C (The testing range varies depending on the sensor)

Resolution: 0.1°C

Channels: 4 channels

Speed: 1s

Calibration: Error correction for per channel

Comparator: Upper and lower overload alarms

Cold end compensation Accuracy: 0.5℃

Interface: Mini-USB, Charging interface, USB

Test terminal voltage: Channel isolation voltage under 100V

Battery parameters: 8.4V, Li 1400mAh; Rechargeable Battery

Charging time: Max :200Min

Working time: Brightness 30% ≥ 14 hours; Brightness 50% ≥ 12 hours; Brightness 100% ≥ 9 hours

Others: 2.8 inch true color 16M color; TFT-LCD display; Touch screen; USB communication, compatible with SCPI instruction set; Backlight adjustment; Scheduled shutdown; USB disk storage

Accessories: Thermocouples 4 roots 2m/root

ATL909 DC adaptor; ATL805 Li battery; ATL105 USB communication cable; Data acquisition software

Datasheet
