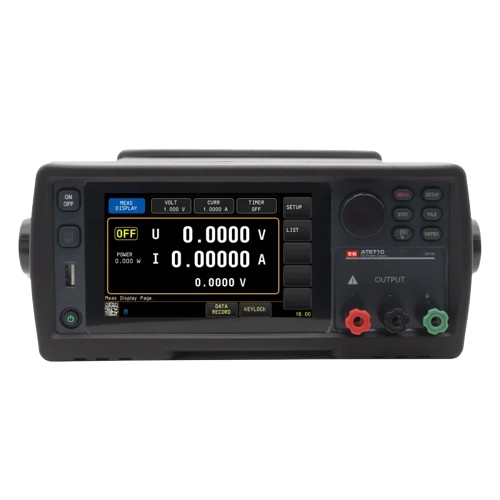

ONMEAS AT6710 High-Speed High-Precision Linear DC Power Supply (32V; 3A; 96W)

Rated value:

Voltage: 0~32V

Electric current: 0~3A

Power: 96W

Load regulation ratio:

Voltage: ≤0.01%+2mV

Electric current: ≤0.05%+0.1mA

Power regulation:

Voltage: ≤0.01%+1mV

Electric current: ≤0.05%+1mA

Set value resolution:

Voltage: 1mV

Electric current: 0.1 mA

Read back value resolution:

Voltage: 0.1 mV

Electric current: 0.01 mA

Set value accuracy:

Voltage: ≤±0.03%+3mV

Electric current: ≤±0.05%+2mA

Accuracy of the read back value:

Voltage: ≤±0.02%+3mV

Electric current: ≤±0.05%+2mA

Ripple and noise (20Hz-7MHz):

Voltage: ≤1mV Vrms, ≤3mV Vpp

Electric current: ≤3mA rms

Overvoltage protection:

Range: 1-31V

Accuracy: ± (set value * 0.5% + 0.5V)

Response time: ≤10mS

DVM:

Display value accuracy: ≤150mS

Display value resolution: ≤150mS

Programming language: SCPI and Modbus (RTU)

Interface: RS232 / RS485 / LAN / TYPE-C

Other: 5-inch TFT-LCD true color display, touch screen

Accessories: ATL509 test cable; Power cord

Optional accessories: ATL108 RS232 communication cable
