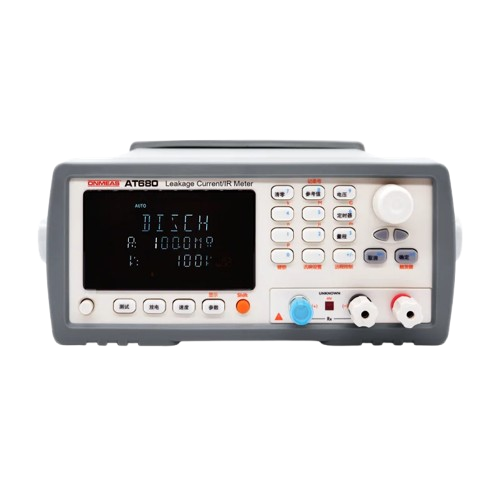

ONMEAS AT680 Leakage Current Tester (1V-650VDC; 1nA-20mA; 1kΩ-325GΩ)

Leakage Current & Insulation Resistance Measurement

Number of Channels: Single Channel

Measurement Parameters: Leakage Current and Insulation Resistance

Output Voltage: Digitally controlled 1V-650VDC

Basic Accuracy: 1%

Test Range: Leakage current: 1nA-20mA, Resistance: 1kΩ-325GΩ

Reading: 9999

Range: Auto and manual

Test Speed: 60/s, 25/s, 3/s

Correction: Open circuit zeroing

Display Result: Direct reading, current, resistance, peak value, and sorting results

Charging Timer: 999.9s

Charging Current: 200mA (MAX)

Comparator: 30 sets of records, OK/NG

Instrument Size: 264 (W) x 107 (H) x 350 (D) mm

Net Weight: 5 kg

Power Requirements: 198-252VAC, 47.5-52.5Hz, 50VA

Interface: RS-232, Handler

Communication Protocol: SCPI
