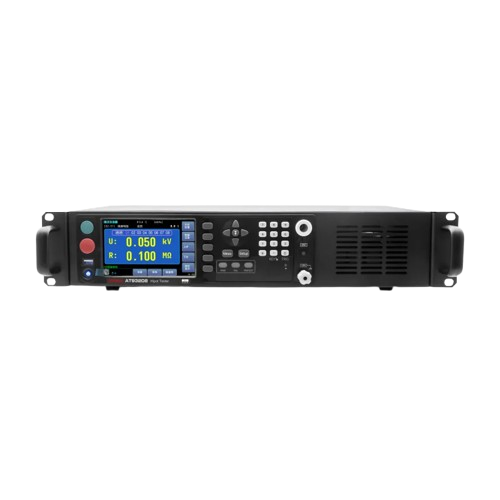

ONMEAS AT93208 Comprehensive Electrical Safety Tester (AC 5.000kV/100mA; DC 6kV/50mA; DC 2.5kV/9999MΩ)

Test Functions: AC Withstanding Voltage, DC Withstanding Voltage, Insulation Resistance

Interface: USB-HOST, RS232/RS485, HANDLER, Alarm Light Interface, External Remote Control Interface

Standard Configuration: 5kV, 100mA, 500VA

AC Withstanding Voltage

Rated Output: AC 5.000kV/100mA

Voltage Measurement: 0.10 ~ 5.00kV Resolution: 0.01kV

Voltage Measurement Accuracy: (1.5% of reading + 1 count)

Measurement Current: 0.000~3.500/3.00~100.00 mA Resolution: 0.001 / 0.01mA

Current Accuracy: 2% × reading + 5 digits

DC Withstanding Voltage

Rated Output: DC 6kV/50mA

Current Measurement: 0.0~350.0/300~3500/3000~9999 μA/50mA Resolution: 0.1/1/10μA/0.01mA

Current Accuracy: 2% of reading + 5 digits

Insulation Resistance

Rated Output: DC 2.5kV/9999MΩ

Measurement Range: 1MΩ-9999MΩ, Resolution 1MΩ

Instrument Dimensions: 246(W)x112(H)x536(D)

Net Weight: 20kg

Power Requirements: Voltage: 220VAC, Frequency: 50Hz/60Hz, Power: 550VA
