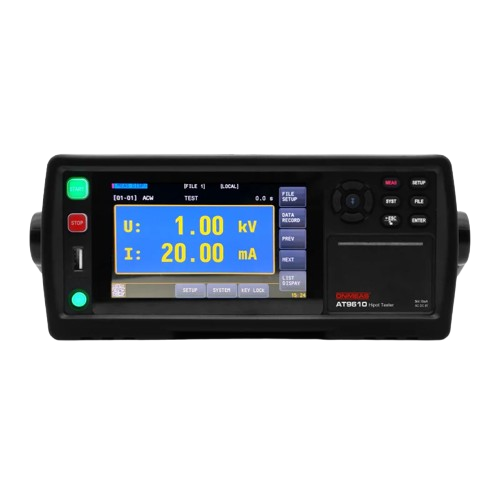

ONMEAS AT9610 AC/DC Withstanding Voltage & Insulation Resistance Tester (AC 5.000kV/10mA; DC 6kV/5mA; DC 1kV/50GΩ)

Channels: Single Channel

Test Functions: AC Withstand, DC Withstand, Insulation Resistance

Interfaces: RS232/Handler/USB/RS485/Ethernet

AC Withstand Voltage

Rated Output: AC 5.000kV/10mA

Output Voltage: 0.050kV-5.000kV AC Resolution: 10V

Measurement Current: 0.001mA-10.00mA Resolution: 0.001/0.01

DC Withstand Voltage

Rated Output: DC 6kV/5mA

Output Voltage: 0.050kV-6.000kV DC Resolution: 10V

Current Measurement: 0.1μA-5.000mA

Insulation Resistance

Rated Output: DC 1kV/50GΩ

Output Voltage: 0.050kV-1.000kV DC Resolution: 1V

Voltage Accuracy: 2% of setting + 5V

Measurement Range: 1MΩ-49999MΩ

Instrument Dimensions: 215mm(W)×88mm(H)×400mm(D)

Net Weight: 8kg

Power Requirements: 220V 50/60Hz 550VA
