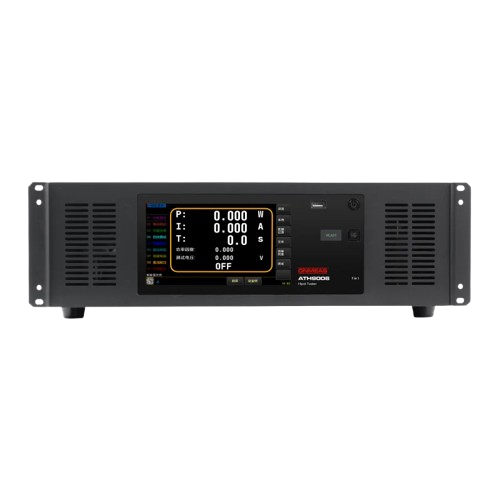

ONMEAS ATH9006 Comprehensive Electrical Safety Tester (5kV AC, 100mA; 6kV DC / 10mA; 1kV / 10GΩ)

Test Functions: AC/DC Withstanding Voltage, Insulation Resistance, Grounding Resistance, Leakage Current, AC Power, Startup (optional)

Interfaces: RS-232/RS-485/USB/Handler; External Remote Control / Alarm Light Interface

AC Withstand Voltage

Rated Output: 5kV AC, 100mA

DC Withstand Voltage

Rated Output: 6kV DC / 10mA

Insulation Resistance

Rated Output: 1kV / 10GΩ

Measurement Range: 0.1MΩ to 10GΩ

Grounding Resistance

Rated Output: 2.0 to 40A, 10.0 to 600mΩ

Leakage Current

Test Type: G-L, G-N, AUTO (G-L, G-N)

AC Voltage Measurement: 60.0V to 300.0V (Resolution: 0.1V, Accuracy: 1.5% × Reading + 3V)

AC Current Measurement: 0.000mA to 20.00mA (Resolution: 0.001mA / 0.01mA, Accuracy: ±(1.5% Reading + 5 digits))

Test Time: 1s to 999s

AC Power

AC Voltage Measurement: 60.0V to 300.0V (Resolution: 0.1V, Accuracy: ±(0.25% × Reading + 0.25% × Range))

AC Current Measurement: 0 to 30A (Resolution: 0.001A / 0.01A, Accuracy: ±(0.25% × Reading + 0.25% × Range))

Active Power Measurement: 0 to 6000W (Resolution: 0.1W / 1W, Accuracy: ±(0.25% × Reading + 0.25% × Range))

Startup Function

AC Voltage Measurement: 60.0V to 300.0V (Resolution: 0.1V, Accuracy: ±(0.25% Reading + 0.25% Range))

AC Current Measurement: 0 to 30A

Current Setting Range: Upper limit: 0.001 to 30.00A, Lower limit: 0.000 to 30.00A

Instrument Dimensions: 470 × 133 × 491 mm

Net Weight: 30 kg

Power Requirements: 220V to 240V AC, 47.5 to 52.5Hz, 300VA
