Media Compatibility: Dry air or inert gas
Input Power: 12-30VDC, or 24VAC nominal
Output Field-selectable: 2-wire, loop-powered 4-20mA (DC only, clipped and capped) or 3-wire 0-5V/0-10V
Pressure Ranges:
Unidirectional: 0.1/0.25/0.5/1/2.5/5/10 in. WC, switch selectable
Bidirectional: ±0.1/±0.25/±0.5/±1/±2.5/±5/±10 in. WC, switch selectable
Unidirectional: 25/50/100/250/500/1,000/2,500 Pa, switch selectable
Bidirectional: ±25/±50/±100/±250/±500/±1,000/±2,500 Pa, switch selectable
Velocity Mode:
500/1000/2000/3000/4000/5000/6000/7000 ft/min
2.5/5/10/15/20/25/30/35 m/s
Response Time Standard: T95 in 20 sec, Fast: T95 in 2 sec, switch selectable
Mode: Unidirectional or bidirectional, switch selectable
Display (option): Signed 3-1/2 digit LCD, indicates pressure, overrange indicator
Proof Pressure: 3 psid (20.6kPa)
Burst Pressure: 5 psid (34.5kPa)
Accuracy: ±1% F.S. of selected range (combined linearity and hysteresis)
Temperature Effect: 1" 0.05%/°C; 10"
Operating Environment: 0°- 60°C (32° to 140°F); 0 to 90% RH non-condensing

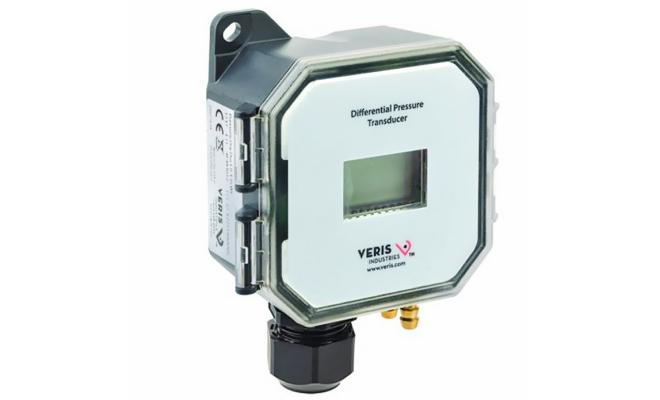

A transducer sensor that can measure either air pressure or velocity with the flip of a switch. Available in the universal configuration, with pressure and velocity range options: 0-10" WC / 0-7,000 ft/min, with seven field-selectable sub-ranges for pressure and eight for velocity. Available with display. This sensor has an IP65/NEMA 4 environmental rating. For use with HOBO® H22, U12, U30, UX120-006M, MX1104, MX1105, and RX3000 data loggers and HOBO ZW data nodes
