Parameters of Ring Wave Generator:
Voltage Oscillation frequency (open): 100kHz±10%
Output voltage(open): 250V~4000V)±10%
Frontier(open circuit voltage,T1,10%~90%): 0.5μs±30%
Frontier(short circuit voltage,T2,10%~90%): ≤0.9μs
Decay Rate (open circuit voltage)
40%<(PK2)/(PK1)<110%
40%<(PK3)/(PK2)<80%
40%<(PK4)/(PK3)<80%
Short circuit current at 3500V(PK1):
292A±10% @12Ω
117A±10%@30Ω
Interval: 1s~99s
Impulse times: 1~9999times
Output mode: Positive, negative, positive/negative auto
Output Impedance: 12Ω,30Ω
Phrase: asynchronous, synchronous
Coupling and decoupling network(CDN): 16A single Phase or
20A 3 phases / 5wires
Parameters of Surge Generator
Output voltage (open): 6kV (Max) ±5%
Front time: 1.2μs ±30%
Time to half-value: 50μs ±20%
Output current (short): 3kA (Max) ±5%
Time to half-value: 20μs ±20%
Output polarity: Positive, negative, positive/negative
automatically
Output impedance: 2Ω±10%
Synchronization,asynchronization: Synchronization,asynchronization
Inject phase: Freely set at 0-360°,resolution:1°
Trigger mode: Auto or manual, single
Surge times: 1-9999 times
Memories: 1000 groups
Surge interval: 20-9999s
Accuracy:: 5%
CDN
AC:single phase 300V,10A (16AMax), 50/60Hz
DC: 300V, 10A (Max)
Working environment
Temperature:15°C-35°C humidity:0%-75%
EUT power supply: AC220±10%, 50/60Hz, about 300W
Dimension: W470mmxH260mmxD500mm
Weight: About 35kg

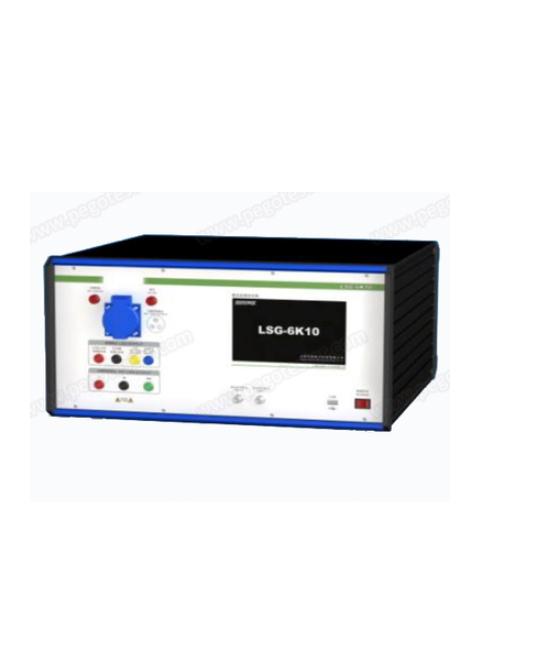

This equipment is a 2 in 1 equipment, which combinates the ring wave generator and lightning surge generator. The equipment can meet the test requirements of IEC61000-4-5 and IEC61000-4-12.
