Distance between contact surface and axis surface: 8mm
Force arm: 0-250mm
Weights: 0.25N 0.5N 1.25N 0.5N
Configuration: all-purpose test socket*1 (apply to test GB
and BS plugs)，UL
test socket*1 (apply to test UL plug), AS/NZS test socket *1 (apply to test
AS/NZS plug)
Note: other plugs can be customized

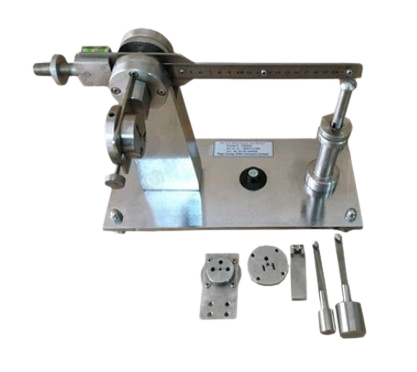

Plug torque test device is designed according to IEC60065 clause 15.4.1 and figure 11, IEC60950-1 clause 4.3.6, IEC60335-1 clause 22.3, IEC60884-1 clause 14.23.2 and etc.. It is applied to check the main plugs mechanical strength of direct plug-in equipment. A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets, the torque shall not exceed 0.25Nm.
