- Function and Application:
Equipment set allowing the performance of 15 experiments about the following topics:
Thermal Expansion (6 experiments)
Heat Transfer (4 experiments)
Thermal Energy (3 experiments)
States of Matter (2 experiments)
- Benefits:
Optimised for demonstration experiments: Transformation from horizontal into vertical direction with the help of the Demo board
Demonstrative display of the measured values on the digital large-scale display
Secure fastening of burners and hot vessels
Glass equipment, liquid levels and flowing liquids can be observed easily on the plain background
Complete equipment set: Simple execution of the experiments

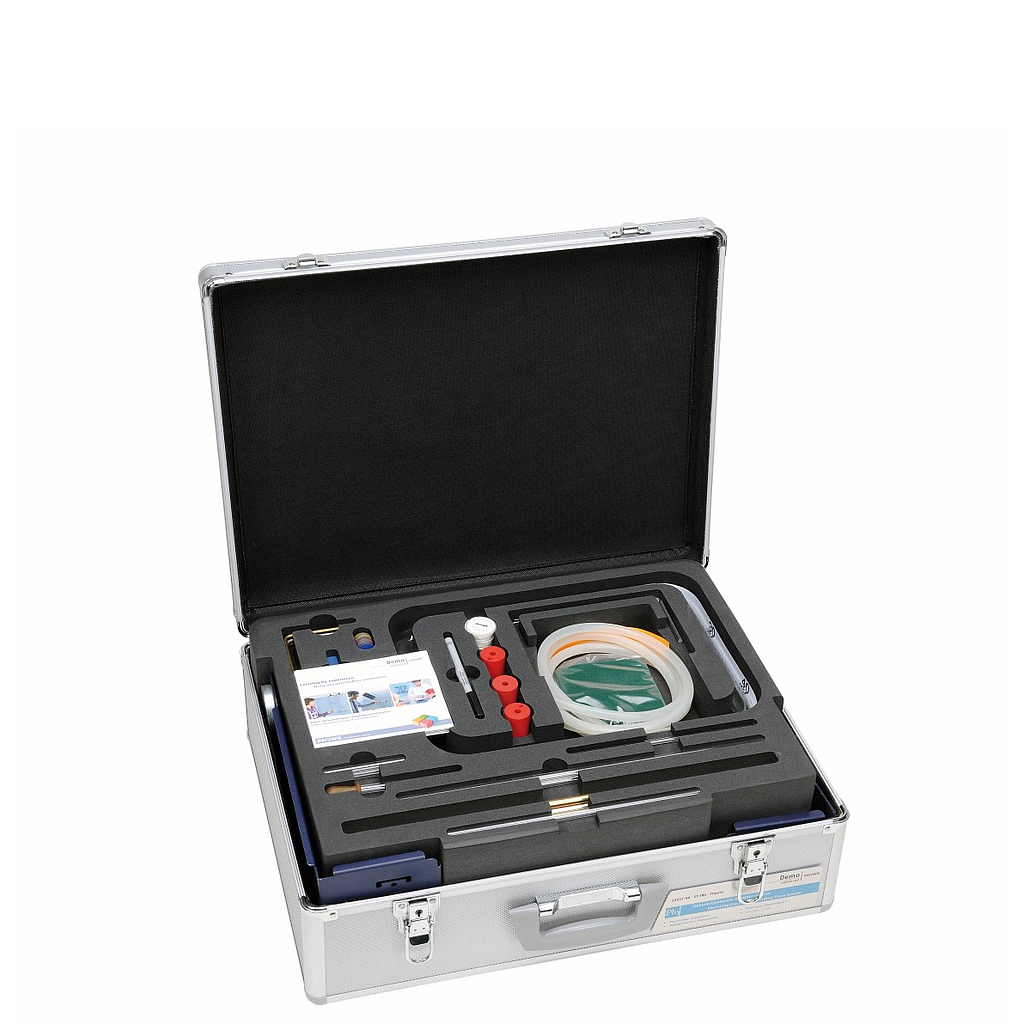

The equipment is stored in a robust aluminum case with removable lid
Foam insert for a quick control of completeness and secure transport of the set
Matched with international Curriculum: All topics are covered
- Equipment and Technical Data:
The equipment set consists of all essential components for the experiments
robust storage case with foam insert fitting to the contained equipment
- Scope of delivery:
Rod on fixing magnet: 02151-02, 1
Clamp.holder d=28-36mm fix.magn.: 02151-06, 2
Clamping holder, 0-13 mm, fixing magnet: 02151-07, 2
Scale for demonstration board: 02153-00, 1
Pointers f. Demonst.Board, 4 pcs: 02154-01, 1
Marker points for demonstration board, 24 pcs: 02154-02, 1
Support plate on fixing magnet: 02155-00, 1
Burner-holder on fixing magnet: 02162-00, 1
Wire gauze holder on fix. Magnet: 02163-00, 1
Clamp on holder: 02164-00, 1
Wire gauze with ceramic, 160 x 160 mm: 33287-01, 1
Brass tube: 04234-11, 1
Iron tube: 04234-12, 1
Aluminium tube: 04234-13, 1
Collar for linear expansion: 04231-55, 1
Rotating shaft with pointer: 04236-01, 1
Thermometer, non-graduated: 04256-00, 1
Metal bodies, set of 3: 04406-00, 2
Convection of liquids tube: 04510-00, 1
Beaker, aluminum, polished: 05903-00, 2
Aluminium rod,U-shaped: 05910-00, 1
Copper rod, U-shaped: 05910-01, 1
Brass rod, U-shaped: 05910-02, 1
Glass rod,U-shaped: 05911-00, 1
Test tube, d 30mm, l 200mm, black: 36294-06, 1
Test tube, d = 30 mm, l = 200 mm, white: 36294-05, 1
Beaker, 100 ml, plastic (PP): 36011-01, 1
Beaker, boro, low-form | Volume: 250 ml: 46054-00, 1
Beaker, boro, low-form | Volume: 400 ml: 46055-00, 1
Graduated cylinder, high ,PP, 500 ml | Volume: 100 ml: 36629-01, 1
Graduated cylinder, high ,PP, 500 ml | Volume: 250 ml: 36630-01, 1
Pipette with rubber bulb: 64701-00, 1
Glass rod, boro 3.3, l=200mm, d=5mm: 40485-03, 1
Rubber stopper 26/32, 1 hole 7 mm: 39258-01, 1
Rubber stopper 26/32, 2 holes 7 mm + 2,5 mm: 39258-13, 2
Funnel, diameter = 50 mm, plastic (PP): 36890-00, 1
Silicone tubing, inner diameter 3 mm | diameter: 6 mm: 47530-00, 2
Heat sensitive paper: 04260-00, 2
Felt sheet, 100 x 100 mm: 04404-20, 2
Fishing line, l. 20m: 02089-00, 1
Marker, black: 46402-01, 1
Microspoon, steel: 33393-00, 1
Erlenmeyer flask, stopper bed, 100 mlSB 29: MAU-EK17082301, 2
- Necessary accessories:
DEMO advanced Heat necessay acessories 15530-01
PHYWE Demo Physics board with stand 02150-00
- Recommended accessories:
Moveable experimental table 90 x 75 cm, 30 mm table top withPP edge, with shelf for 3 boxes and socket board 15500-00
Ball and ring 04212-01
Pin shearing apparatus 04220-00
Tin can, 1 litres 02678-02
Calorimeter, 500 ml 04401-00
Handbuch Lehrerversuche Wärme auf der Tafel, DEMO advanced Physik (WT), (in german) 01154-01
