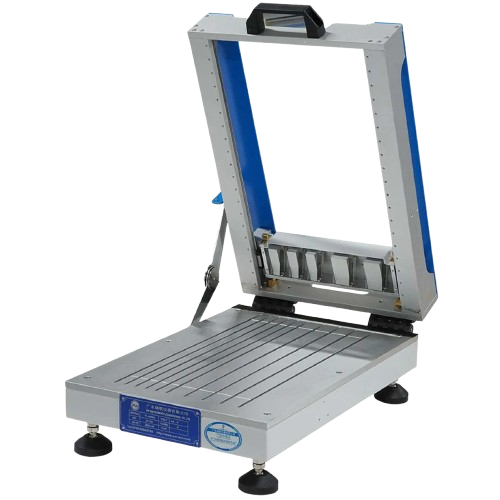

PW Instruments PW-8809A Manual Adhesive Tape Protective Film Release Film Sampler (300mm)

Unit: mm

Sampling thickness: Foam tape 0.1—1.5/PET protective film 0.1—0.25/cloth tape 0.1-0.6

Sampling width: 15mm, 24mm, 25.4mm (can be customized according to customer requirements)

Sampling length: 300mm

Sampling quantity: 7 per group

Sampling accuracy: ±0.01mm

Dimensions: 470*285*155MM

Weight: 8KG

PRODUCTS DETAILS

It is mainly suitable for the sampling of adhesive tape, protective film, release film and other products.

Machine Function

Lift the holder, put the sample into the template, then put down the holder to compress the sample, press down the knife holder and pull the knife holder at a certain speed, the blade cuts across the product, and cut out samples of equal length and width.

Innovative Structural and Design Features

The PW-8809A emphasizes mechanical reliability and precision through its robust frame and exacting blade mechanism, ensuring consistent sample dimensions critical for adhesion test accuracy. Its design incorporates customizable widths and accommodates various material thicknesses, positioning it as a versatile universal testing machine sample cutter. The compact and portable form allows integration in diverse laboratory and production settings, supporting systematic and repeatable sample cutting necessary for protective film sampler and release film sampler applications.

Enhanced Operational Performance and User Efficiency

This manual sampler facilitates ease of use with a straightforward compression and cutting mechanism requiring minimal training. Its precision translates directly into reliable sample uniformity, improving data consistency in adhesion test and peel test peel strength tester procedures. The device’s durability enables sustained industrial use, reducing downtime and reinforcing ROI for stakeholders invested in universal testing equipment. Quick sample turnarounds empower quality control teams to maintain compliance while streamlining R&D sample prep workflows.
