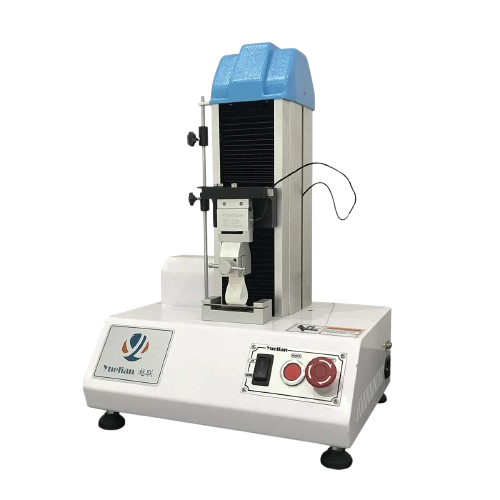

PW Instruments PW-S06LT Ring Type Initial Adhesive Testing Machine (50N,200mm)

Load selection: 50N

Measurement accuracy: ±1% measurement error

Resolution: 0.01N

Loading speed: 0.5~500mm/min

Stretching stroke: 200mm

Power: 40w

Power Supply: 220V 50Hz

Machine Dimension: 360mm（B）×380mm（L）×520mm（H）

Net weight: 17Kg

Standard configuration: Host computer、1 pc sampling knife，10 pcs test steel sheets

PRODUCTS DETAILS

The Ring Initial Adhesion Tester is ideal for measuring the initial adhesion value of self-adhesive products, labels, tapes, protective films, and other adhesives. It provides precise measurements of the initial viscosity force.

Features:

The ring-type initial adhesive testing machine is a compact and efficient device that measures adhesive and viscous force quickly and accurately. It is an advanced measuring instrument that stands out for its accuracy and ease of use compared to traditional methods.

This machine uses microcomputer control technology, which provides high precision and easy operation. Its precision sensors ensure that accuracy levels are maintained to the standard of +0.1% of the weight sensor. Additionally, it adopts advanced motor and lead screw drive technology, resulting in smooth operation and more accurate displacement measurements.

The machine can preserve force values and store more than one test data, making it convenient to view experimental results. The computer controls the speed, which can be set within a range of 1-500. The testing methods that can be fulfilled include ASTM, TLMI, and FINAT.

The data collection system is highly accurate and easy to use, making it an advanced measuring instrument. It can read the intensity of the test and characterization results, and save it in the database. Multiple test data can be stored, facilitating operator access to previously recorded values. The displayed data units are optional, including grams, kilograms, Newton, among others.
