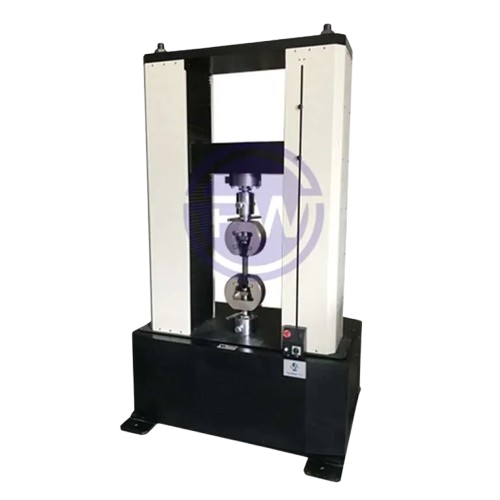

PW Instruments PW-UD200 Universal Strength Testing Machine (200KN)

Capacity: 1KN, 2KN, 5KN, 10KN, 20KN, 50KN, 100KN, 200KN(Available for double capacities)

Display: Computer display

Force Resolution: 1/500,000

Force Accuracy: ≤±0.3%

Stroke Resolution: 1/500,000

Control Mode: Full computer operating mode

Test Stroke: 1000mm

Distance between two columns(Test Width): 550mm

Test speed: 0.001~1000mm/min Computer set with up and down quick adjustment button of grips

Stop Mode: Overload stop, emergency stop, specimen damage automatic stop, upper and lower limit automatic stop, automatic reset function

Machine Drive: Servo-motor driven, synchronous wheel and precision ball screw drive

Force sensor: Load Cell comply with ASTM-E4 standard which accuracy is limited within 1.0 %

Dimension: 108*85*205cm (W*D*H)

Weight: About 1250kg

Power: 2500W

Voltage: 380V 50HZ 2KW

Accessories: 1 set of grips, test software, USB computer connection wire

Optional: Personal computer

PRODUCTS DETAILS

This equipment is capable of testing a wide range of materials such as rubber, plastic, leather, metal, nylon thread, fabric, paper, aviation, packaging, construction, petrochemical, electrical, vehicle, and others. It can perform tests like tension, compression, bending, shear, adhesion, peeling, tearing, and more. This makes it an essential tool for quality control, incoming inspection, physical property testing, mechanics research, and material development.

Software Functions:

Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; Can conduct tensile, compression, bending, shearing, tearing and peeling test; The PC and interface board are used to collect, save, process and print the test results of the data; It can calculate parameters such as maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus, etc.;It can be used for curve processing, multi-sensor support, graphical interface, flexible data processing, MS-ACCESS database support, making the system more powerful.making more powerful function of system.

Standard:

ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2, BS1610,GB T228
