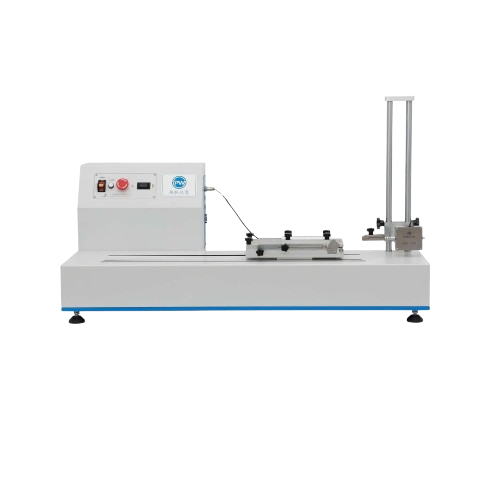

PW Instruments PW-UH03A High Speed Peel Testing Machine (10N~1KN)

Capacity (MAX): 1KN (optional 10N~1KN range force sensor)

Control mode: full computer control mode, powerful software function

Power unit: N、kN、gf、kgf、lbf、kP、tf(SI)、tf(long), etc.

Length unit: mm、cm、Inch、m、km、um, etc.

Power resolution: 1/1,000,000

Accuracy: ±0.1%

Travel resolution: 1/1,000,000

Sensor accuracy: 0.03%

Effective stroke: 650mm; (customizable)

Speed range: 0.01~30000mm/min (customizable)

Test space: 100mm（customizable）

Shutdown mode: overload shutdown, emergency stop button, automatic shutdown of specimen damage, automatic shutdown of upper and lower limit settings

Machine power: Servo motor drive

Machine size: 1300×480×480mm (W×D×H)

Net weight of machine: About 55KG

Power: 400W

Power supply: 220V 50~60HZ

Machine configuration: 1 USB communication cable, 1 copy of software, 1 manual roller, 1 sampling knife, 5 pieces of test steel platev

PRODUCTS DETAILS

It is widely used for tensile testing, 90° to 180° peel strength testing, and tape sheartesting of physical properties of products and semi-finished products such as polymers, die-cutting materials, adhesives, adhesive tapes, and films. With a special structure, it can reach the set speed in an extremely short time. The testing speed is as high as 30,000 mm/min, and the high sampling rate of 1,200 Hz ensures more accurate testing.

1.Powerful testing capabilities: With different fixtures, it can meet a variety of testing

requirements and satisfy user needs.

2.Enhanced software functionality: It can calculate various test results, display test curves within

any range, and automatically mark them. It can also be upgraded at any time to achieve positioning, force control, time control, and repetitive fatigue testing.

3.Aesthetic and user-friendly design: The machine has an attractive appearance, is easy to

operate, and features strong software expandability and high precision.

4.Servo motor drive and high-precision ball screw transmission: Low failure rate and simple

maintenance.

Design and Structural Benefits of the PW-UH03A

The PW-UH03A features an industrial-grade servo motor coupled with a ball-screw drive delivering smooth, precise motion with minimal backlash, essential for accurate peel and tensile measurements. Its modular fixture compatibility allows adaptation to numerous sample forms, enhancing usability across materials without extensive hardware changes. The machine’s compact footprint (1300 × 480 × 480 mm) balances space-saving design with mechanical stability and a robust 1 kN capacity. As a product from a well-established tensile testing machine manufacturer, the system emphasizes maintainability and reliability, reducing downtime and extending operational lifespan through an optimized mechanical structure and high-quality components.

Performance and Usability Advantages for Industrial Testing

This high speed peel tester’s software automates critical functions such as peak force identification and data acquisition with a 1,200 Hz sampling rate, ensuring detailed and reproducible results. The user interface provides intuitive control and real-time graphical feedback, supporting operators in precise test setup and monitoring. Its broad speed range up to 30,000 mm/min accommodates a wide spectrum of peel and tensile scenarios, enabling rapid throughput without compromising accuracy. This blend of performance and ease of use increases workflow efficiency, reduces operator error, and delivers measurable return on investment by accelerating testing cycles and improving decision-making for quality control.
