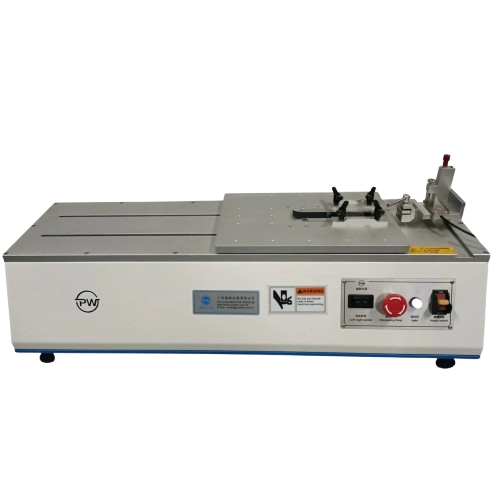

PW Instruments PW-UH03M High Speed Peeling Force Tester (200N)

Capacity selection: 10N, 20N, 50N, 100N, 200N (1 capacity can be selected);

Control mode: full computer control mode, powerful software, one-key measurement completion, output analysis curve graph and print test report.

Force unit: N, kN, gf, kgf, lbf, kP, tf (SI), tf (long) and so on.

Length unit: mm, cm, Inch, m, km, um, etc.

Force resolution: 1/1,000,000

Accuracy:±0.1%

Stroke resolution: 1/1,000,000

Accuracy: ±0.1%

Acquisition frequency: 1,000HZ

Effective stroke: 450mm

Speed range: 0.01~30m/min (0.01~30,000mm/min, can be set arbitrarily)

Sample width: greater than 50MM

Stop mode: overload stop, emergency stop key, specimen destruction automatic stop, automatic reset, left and right limit setting automatic stop

Machine power: precision servo motor drive;

Machine size: 850 × 270 × 560mm (L × W × H)

Machine net weight: about 45KG

Power: 400W

Power supply: 220V 50~60HZ

The machine is equipped with: 1 connection line, 1 copy of software, 1 set of fixture.

Optional: size 90 degree peeling fixture, friction coefficient fixture, unwinding force fixture, test steel plate and consumables, etc

PRODUCTS DETAILS

This machine is designed for conducting high-speed peeling tests on various products, including release film, release paper, tape, film, and other adhesive materials. It comes with different fixtures to perform different types of peeling such as 90 degrees, 180 degrees, multi-angles, unwinding force, and coefficient of friction. This machine is widely used in R&D, production, and other new material industries.

1, The product test function is extensive, with different capacity sensors and fixtures, it can perform 90 degrees to 180 degrees tensile force, peeling force, tearing, shear, release force and other tests.

2, The software is powerful, it can set any demand and can be multi-interval value, report any editing and other functions.

3, The machine design is beautiful and exquisite, easy to use and operate, software expandability and high accuracy.

4, Precision servo motor drive, high-precision screw and guide rail drive, can quickly respond and reach 30M/MIN speed in a very short time, low failure rate and simple maintenance, the highest speed can be customised up to 100M/MIN (1200000mm/min).
