Gain: 5 dBi
VSWR: 5

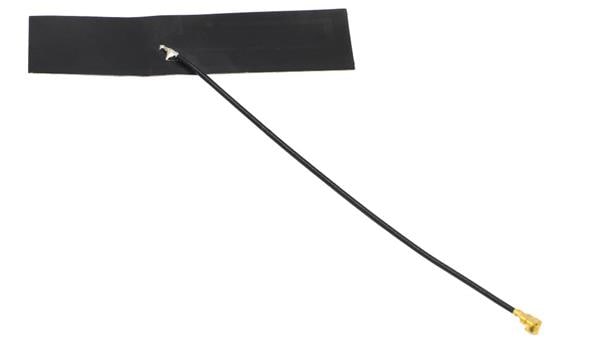

Style: T-Bar Flex
Width: 19 mm
Length: 62 mm
Impedance: 50 Ohms
Cable Type: 101 mm RF1.13
Application: Cellular Radio, Wireless Applications
Mounting Style: Adhesive Mount
Number of Bands: 2 Band
Center Frequency: 868 MHz, 933 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz
Mechanical Style: PCB Trace
Maximum Frequency: 2.69 GHz
Minimum Frequency: 824 MHz
Termination Style: Connector
Antenna Connector Type: IPEX MHF1
Protocol - WiFi - 802.11: WiMAX
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
