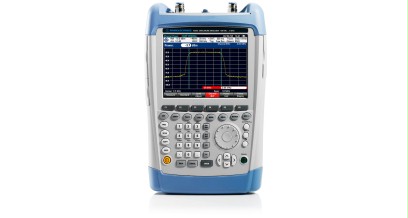

Manufacturer: Rohde&Schwarz
Model : FSH4.04
Warranty : 12 months
Tracking generator: No
Preamplifier: Yes
Frequency range: 9 kHz to 3.6 GHz
Resolution bandwidths: 1 Hz to 3 MHz
Phase noise: frequency 500 MHz
Detectors: sample, max. peak, min. peak, auto peak, RMS
Level measurement uncertainty: <1 dB, 0.5 dB typ.
DANL: -161 dBm, typ.-165 dBm
TOI: >+10 dBm, typ. +15dBm
Display: 6.5" color LCD with VGA resolution
Dimensions (W × H × D): 194 mm × 300 mm × 69 mm (144 mm)1)
Weight : 3 kg (6.6 lb)
Demodulation: GSM/GPRS/EDGE,WCDMA,TD-SCDMA CDMA2000, 1xEV-DO, LTE TĐ, LTE FĐ
VNA support: Full 2-port
Entry level model: 3.6 Ghz
Scope of delivery: Lithium-ion battery pack, USB cable, LAN cable, AC power supply, User manual
