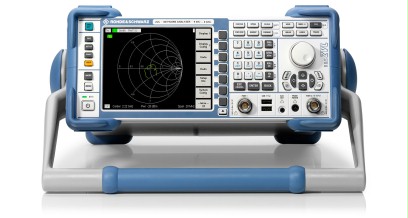

Manufacturer: Rohde & Schwarz
Model: ZVL3
Warranty: 12 months
Network analysis
Frequency range: 9 kHz to 3 GHz
Measurement point: 201
Measurement time: < 75 ms
Data transfer (201 measurement points):
Via RSIB over 100 Mbit/s LAN: 1.5 ms
Dynamic range at 10 Hz measurement bandwidth: > 115 dB, typ. 123 dB
Output power: > 0 dBm, typ. +10 dBm
Measurement bandwidths: 10 Hz to 500 kHz in 1/2/5 steps
Weight (without battery): < 7 kg (15.43 lb)
Number of measurement points per trace: 2 to 4001
Operating system: Windows XP
Spectrum analysis
Frequency range: 9 kHz to 3 GHz
Frequency uncertainty: 1 × 10–6
Resolution bandwidths: 300 Hz đến 10 MHz
Video bandwidths: 10 Hz to 10 MHz
I/Q demodulation bandwidth: 20 MHz
SSB phase noise at 500 MHz: typ. –103 dBc (1 Hz)
DANL : < –140 dBm (1 Hz)
IP3:> +5 dBm, gõ. +12 dBm
Detectors: max/min peak, auto peak, RMS, quasi peak, average, sample
Level measurement uncertainty (95 % confidence level): < 0.5 dB
Accessories: Manual, Power Cable
