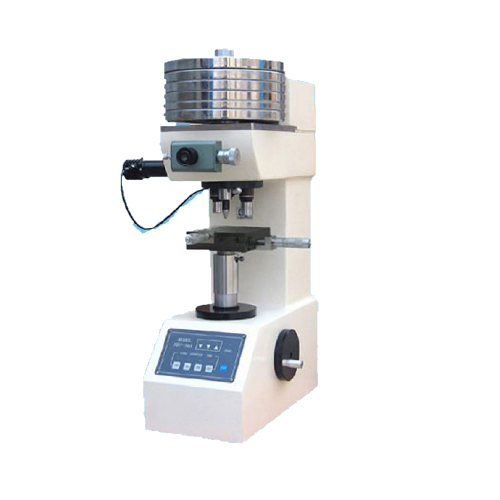

Specifications:
Measuring range: 8-650HBW, 10-3000HV
Test force: 9.807, 24.52, 49.03, 98.07, 196.1, 294.2N
(1, 2.5, 5, 10, 20, 30kgf)
Max. height of test piece: 130mm
Depth of throat: 100mm
Magnifications of the measuring system: 500X, 125X
Min. scale value of the optical micrometer: 0.25um
Power supply: 220 AC or 110V AC, 50 or 60Hz
Dimensions: 438 x 382 x 708mm
Weight: approx. 88kg
Standard accessories:
Coordinate anvil: 1 pc.
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ1, Φ2mm, 1 pc. each
Diamond pyramid penetrator: 1 pc.
Brinell standardized block: 2 pcs.
Vickers standardized block: 2 pcs.
Electronic calculator: 1 pc.
