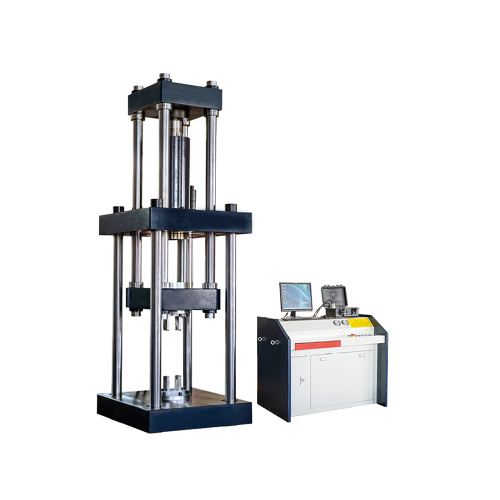

Product Application:
The measurement and measurement of the standard force gauge, the measurement of the load cell and the load cell (non-linearity, repeatability, sensitivity, etc.).
Comply with JJG1116-2015 "Superimposed Force Standard Machine Verification Regulations", JJG669-2003 "Weighing Sensor Calibration Procedures", JJG144-2007 "Standard Force Measuring Instruments Verification Regulations"
Specifications：
Test force range: 50kN ~ 50MN
Maximum test force: 1000kN (1MN)
Test force measurement range: 2%-100% F.S
Force value error (in, return): Within the range of 2%-10%F.S, the test data is better than ±0.03%;
Test data is better than ±0.01% in the range of 10%-100%F.S
Force value repeatability: Within the range of 2%-10%F.S, the test data is better than 0.03%;
Within the range of 10%-100% F.S; test data is better than 0.01%
Initial load discrimination: 10% FS, better than 0.01%
Load volatility: Within the range of 2%-10% F.S, the test data is better than 0.01%;
Test data in the range of 10%-100% F.S is better than 0.003%
Azimuth error: Within the range of 2%-10%F.S, the test data is better than 0.06%;
Test data is better than 0.02% in the range of 10%-100%F.S
Test space (length X width X height): 1MN (600 X 600 X 800mm)
