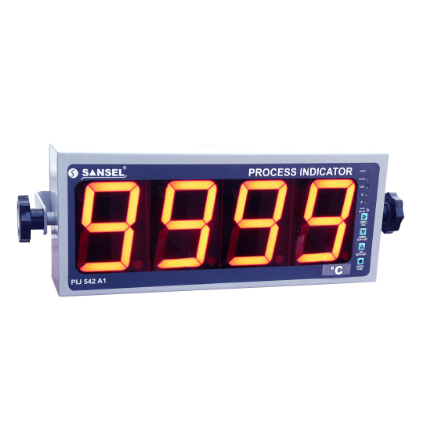

Display: 4” 4 Digit 7 segment RED LED
Analog inputs: 0~20 mA, 0~70 mV, 0~10 V DC, 0~400 U (H & L Limit Programmable)
Temperature inputs: RTD-PT 100, Thermocouple-J, K, R, S, T, B, N, E
Analog display range: - 1999~9999 (H & L Limit Programmable)
Temperature range:
(H & L Limit programmable)
RTD-PT 100 (-199.9~850.0°C/ -199.9~999.9°F)
TC-J (-200~1200°C/ -328~2192°F)
TC-K (-200~1372°C/ -327~2501°F)
TC-R (-40~1768°C/ -40~3214°F)
TC-S (-40~1768°C/ -40~3214°F)
TC-T (-200~400°C/ -328~752°F)
TC-B (300~1820°C/ 572~3308°F)
TC-N (-200~1300°C/ -327~2372°F)
TC-E (-200~999.9°C/ -327~1832°F)
Unit selection: °C/ °F (for RTD & TC inputs)
Analog resolution: 0.001/ 0.01/ 0.1/ 1 (Selectable)
Temperature resolution: 0.1/ 1°C/ °F (optional 0.01for RTD - PT 100 I/P up to 99.99 °C)
Accuracy: ±0.1% of FS
Hold delay: 0 ~ 999 sec (selectable)
PC Communication (optional): RS 485 (2 wire)
Sensor supply (external): 24 VDC ±10% @ 100mA
Operating environment: 0~50ºC / 5~95% RH Non Condensing
Power supply: 230VAC/ DC/ 50/60Hz
Overall dimension: 171(H)x428(W)x85(D) mm
Weight: ≈4.2kg
