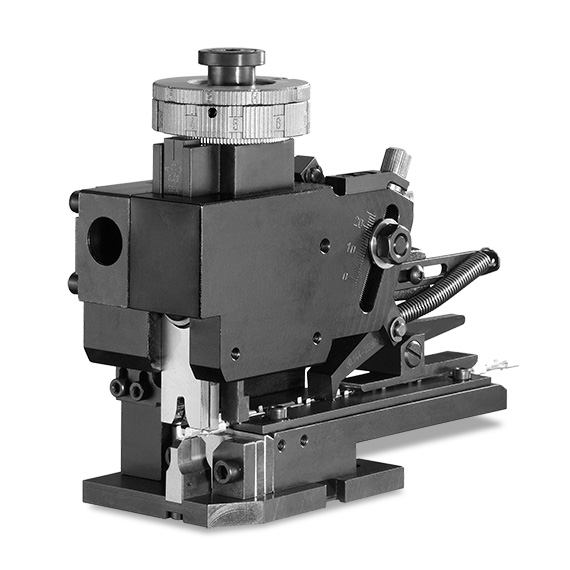

Schaefer SolidCrimp MB-6 Crimping Applicator (6 mm², 20 kN)

Terminal feeding

Feeding actuation : mechanic

Feeding type : from behind

Terminal pitch : up to 28 mm

Processable mâterials

Max. thickness of the sheet : up to 0.8 mm

Wire cross sections : up to 6 mm²

Characteristics of the machine

Press force : 20 kN

Stroke : 40 mm

Shut height : 135.78 mm

Geometry of the applicator

Range of crimp height adjustment : 1.5 mm +/- 0.01 mm, 3 mm +/- 0.02 mm

Width of the punch : 19 mm

Dimensions and weight

Dimensions (W x H x D) : 80 x 155 x 210 mm

Weight : 4.8 kg
