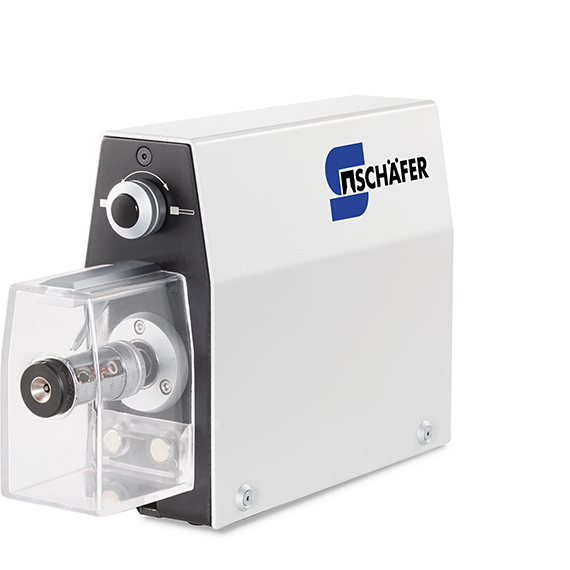

Schaefer ST215W Stripping Machine (0.08 mm - 2.0 mm, AWG 12 - 40,0.3 s – 6.2 s (10 Steps))

Processable wire

Wire

Single wire, jacket cable, coax, etc.

Wire diameter: 0.08 mm - 2.0 mm, AWG 12 - 40

Cable outer diameter: Max. 2.5 mm

Insulation: Teflon, PVC, Kynar, Kapton

Shielding: Copper, stainless steel

Processing

Stripping lengths : Max. 13 mm

Outer jacket stripping length : Min. 10 mm

Rotation/twisting time : 0.3 s – 6.2 s (10 Steps)

Rotation/twisting direction : Left or right

Performance and geometry

Cutting head : Rotary head

Number of stripping blades : 4

Resolution

Diameter : Infinitely

Length : Infinitely

Scale

Diameter : 0.05 mm

Length : 1.0 mm

Supplies and interfaces

Power supply : 100-230 VAC, 47-63 Hz, 24 VDC

Compressed air : 5 - 12 bar

Dimensions and weight

Length x width x height : 210 x 54 x 126 mm

Weight : 0.85 kg
