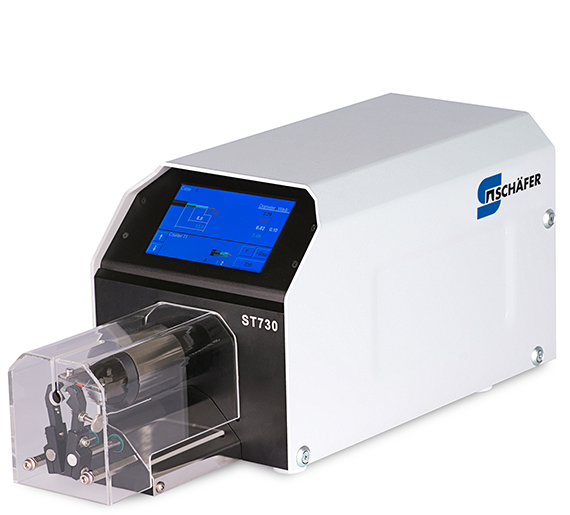

Schaefer ST730 Stripping and Twisting Machine (100, 115, 230 VAC, 50-60 Hz ,30 mm)

Processable wire

Wire

Single wire, jacket cable, coax, etc.

Cable outer diameter: Max. 7 mm

Shielding: Copper, stainless steel

Insulation: Teflon, PVC, Kynar, Kapton

Processing

Stripping length : Max. 30 mm

Outer jacket stripping length : Depending on material and type of wire

Stripping options : Complete, partial, incremental

Stripping levels : 9

Rotation/cutting time : 4 s (3 steps)

Rotation/twisting direction : Left or right

Performance and geometry

Cutting head : Rotary head

Number of stripping blades : 2

Resolution

Diameter : 0,01 mm

Length : 0,1 mm

Scale

Diameter : 0,01 mm

Length : 0,1 mm

Controls

Display : Touchscreen

Job storage : 100 cables with 9 steps

Supplies

Power supply : 100, 115, 230 VAC, 50-60 Hz

Compressed air : Not required

Interface capability : RS232

Dimensions & Weight

Length x width x height : 435 mm x 165 mm x 180 mm

Weight : 8,4 kg
