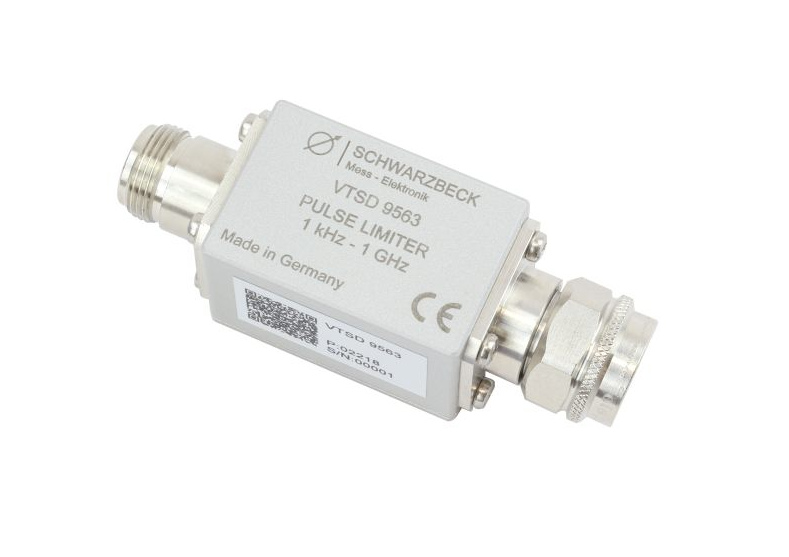

Nominal Frequency Range: 1 kHz – 1000 MHz
Usable Frequency Range: 100 Hz – 4 GHz
Input Connector: N-female
Output Connector: N-male
Insertion Loss (2 kHz < f < 2 GHz): < 1.0 dB, typically < 0.7 dB
VSWR (0.1 MHz < f < 1 GHz): < 1.2
Clipping Level: typically 113 dBµV / +6 dBm
–1 dB Compression Point (P1dB): typically 122 dBµV / +15 dBm
Maximum Continuous Power: 10 W (+40 dBm)
Maximum Peak Power: 100 W (< 1 µs, duty cycle < 1:1000)
Length x Width x Height: 85 × 27 × 27 mm
Weight: 150 g
