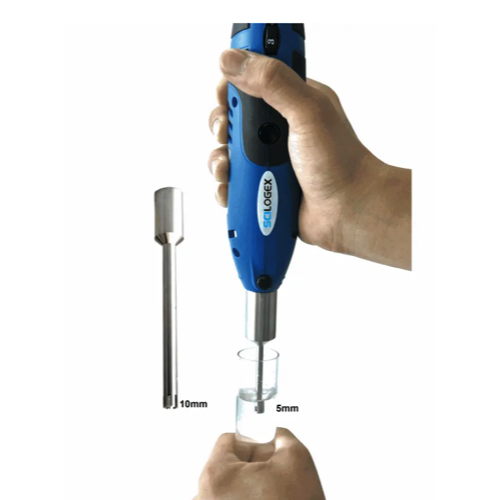

SCILOGEX D160 Homogenizers (5mm & 10mm; 0.1-250ml)

5mm & 10mm Generator Probes, 0.1-250ml capacity, no stand

Power Supply:

110-120V / 60Hz

220-240V / 50-60 Hz

Motor Type Universal motor: 160 W; AC carbon brush motor

Speed Range: 8000-30000rpm

Max. Circum. Speed: 6.3-14 m/sec

Speed Control Dial knob: 6 stage

Working Volume [H2O]:

0.1-50mL (Dispersing shaft DS-160/5)

1-250mL (Dispersing shaft DS-160/10)

Max. Viscosity: 5,000mPas

Material of Dispersing Shaft: SS 316L stainless steel, PTFE

Weight: 0.6 kg

Dimension [L x W x H]: 46mm x 55mm x 230mm

Noise: 72 dB(A)

Operating Environment: 0-40°C, 85% rel. humidity

Protection Class: IP20
