Specification:
–Velocity Range: 0.5 – 30 m/s
–Uncertainty of Measurement: ±1% of reading +1 digit* @ 25°C
–Operating Temperature: -20°C – 100°C
–Storage Temperature: -20°C – 50°C
–Weight: 350g
–Dimensions: 145(h) x 42(d) x 42(w)
–Power Supply: 5 – 15 Vdc
–Output Signal: Signal is conveyed as a DC offset on carrier waveform, simply decoded to a square wave proportional to velocity.
–Nominal Values: 11.7 Hz @ 0.5m/s & 435Hz @ 15m/s
–Freq. Velocity Characteristic: Linear
–Mounting Thread Size: M10
Key Features:

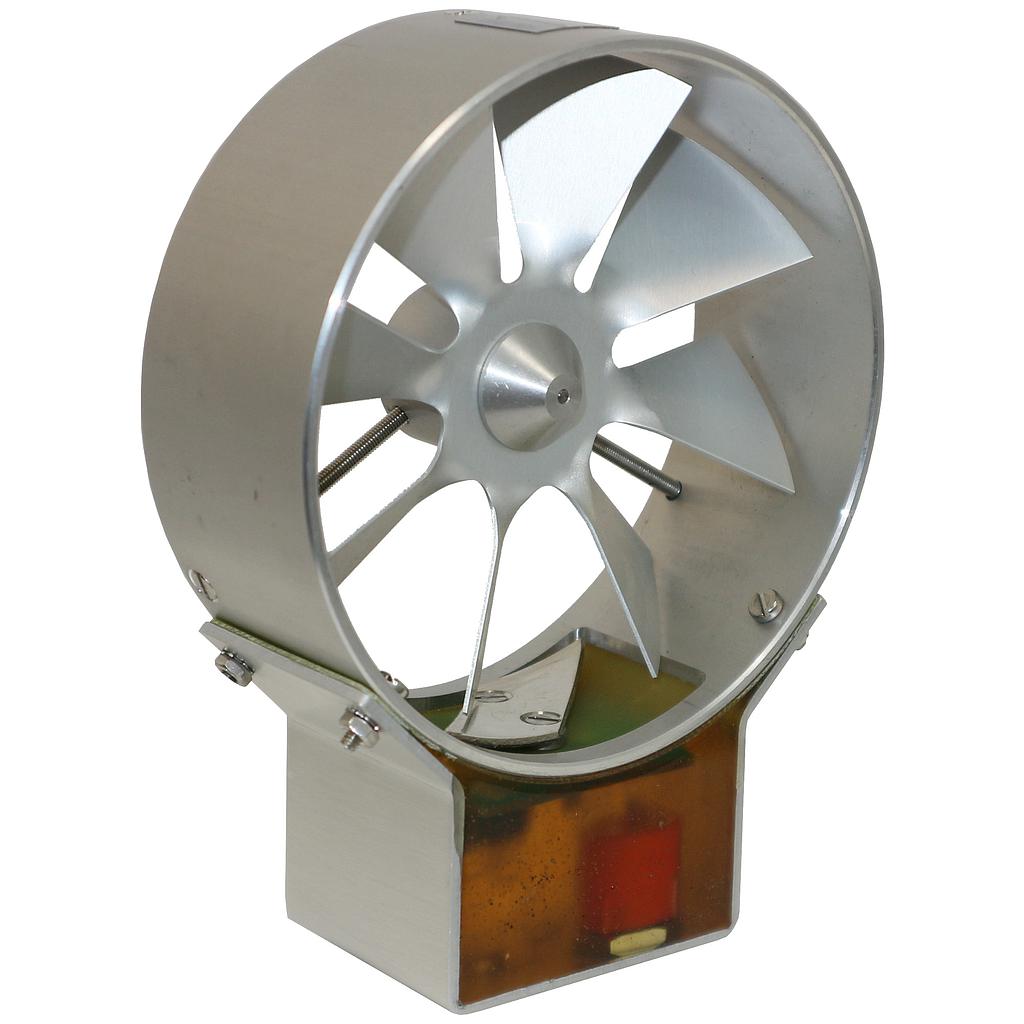

– 100mm Dia’ Rotating Vane
– Range of 0.5m/s to 30m/s
– Overall Dia’ of Ø106mm & Depth of 42mm
– Linear Hz pulse output proportional to velocity
– Set calibration points to suit requirements
– M10 threaded attachment bush
– Range of input plugs & leads
