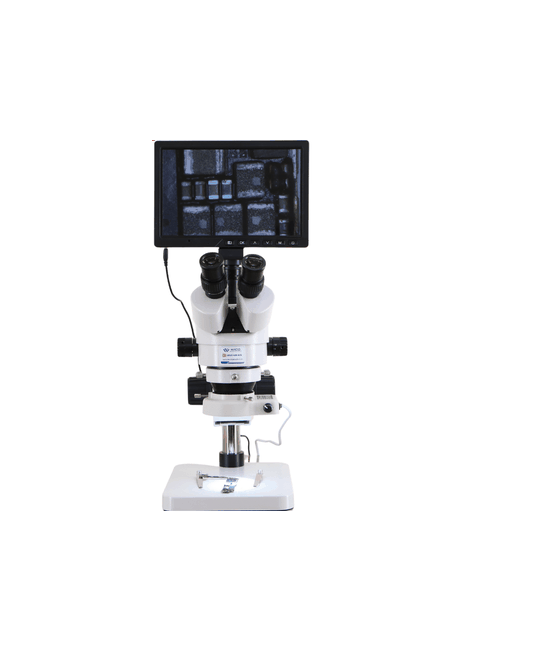

Shinea SZM-1016M Microscope (7–45×)

Microscope Specifications

Magnification: 7–45×

Eyepiece: 10×

Continuously Variable Zoom Objective: 0.7–4.5×

Zoom Ratio: 6.5:1

Working Distance: 100 mm

Viewing Angle: 45°

Interpupillary Distance: 54–75 mm

Illumination Power: 8 W

Voltage: 220 V / 50 Hz

CCD-38MP Camera

Pixel Size: 2.0 × 2.0 μm

Sensor Size: 1/2.8 inch

Video Output Interface: HDMI / USB (HD interface)

Resolution: 1920 × 1080 @ 60 FPS (HDMI)

Screen Size: 10.1 inch

USB Output: 1920 × 1080 @ 30 FPS (USB)

Image Resolution: 4608 × 3456

Digital Zoom: 5× Zoom

Magnifier Function: Supports magnification on the same screen

Interface: Standard C/CS-mount lens interface

Dynamic Range: 40 dB

Image Format: JPEG
