Cladding Diameter: 200μm~300μm
Coating Diameter: 300μm~400μm
Cleaved Length : 2~30μm
Cleaved Angle: Typical value 0.5°
Cleaved Method: Applying tension and blade scoring
Blade and Life: 5~40mm
Blade life: Diamond blades, 10 cutting positions, single cutting point life 2000 times
Power Supply: Adaptor, input: AC100-240V(50/60Hz), output：DC11~13.5V 5A
Battery: 3400mAh
Dimensions: 168*111*116mm
Weight: 1.97kg
Operation condition: Humidity: 0~95%, Temperature: 0~+40℃（no condensation）
Storage Condition: Humidity: 0~95%, Temperature:-40~+80℃（no condensation）
Standard Packages:

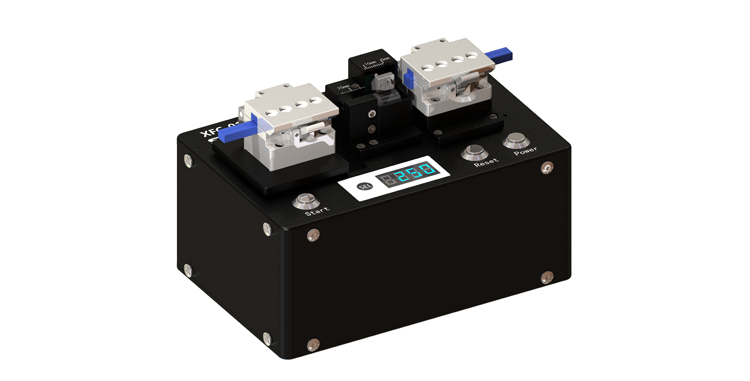

XFC-01 Main Machine: 1unit
Power Adapter: 1pc
1.5 Hex Key: 1pc
1.27 Hex Key: 1pc
Certificate of Conformity: 1pc
User Manual: 1pc
