Measuring range: ±250μm
Resolution: 0.001 μm
Accuracy class: 1° ISO/DIN
Cut-off length: 0.25 – 0.8 - 2.5 - 8 mm
Number of cut-offs: Selectable from 1 to 5
Exploration ride: Up to 16 mm
Probe: Inductive rotable by 90 ° for lateral measurements
Printer: Integrated thermal printer
Measurement parameters: 54 parameters(Ra, Rq, Rt, Rz, Rp, Rc, Rv, Rsk, Rku, Rsm, Rdc, RPc, Pa, Pq, Pt, Pp, Pc, Pv, Psm, Pdc, PPc, Wa, Wq, Wt, Wz, Wp, Wv, Wc, WSm, Wdc, WPc, Rk, Rpk, Pvk, Mr1, Mr2, Pt, Pdc, PPc, R, Rx, AR, Wte, W, AW, Wx, Rke, Rpke, Rvke, Mr1e, Mr2e Rmax, R3z, R3zm)
Graphs displayed: Roughness, waviness, primary, bearing capacity curve, and distribution of Ordinates.
Unit of measurement: Millimeters and inches
Interface: TFT, 5.7'' colour graphic Touchscreen display and 3 waterproof membrane buttons
Languages: Italian, French, English, German, Spanish, Portuguese
Memory: Up to 1000 measures

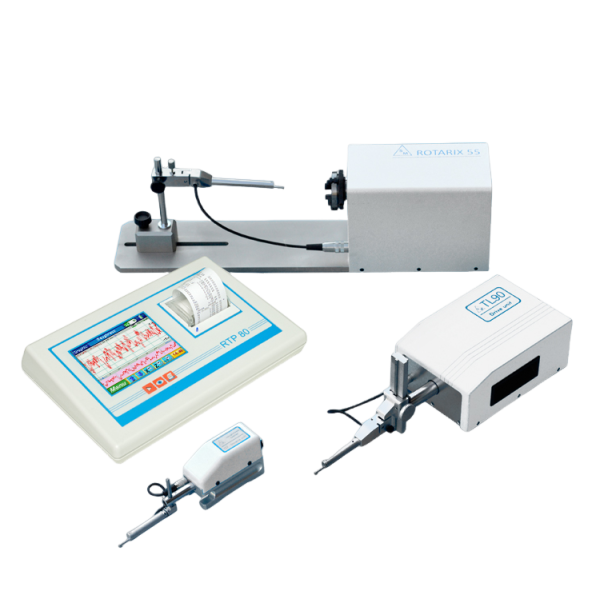

Accessories: RTP80 roughness tester, Translator TS7, 110-230V battery charger, roughness sample, case, user manual
