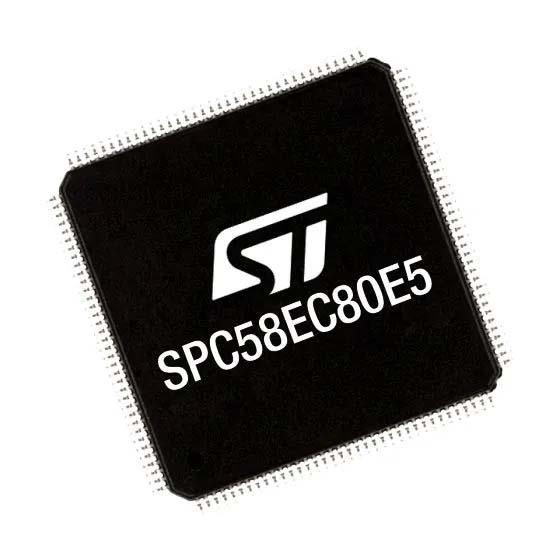

Core: e200z420n3
Unit Weight: 1.020 g
Data RAM Size: 512 kB
Data RAM Type: SRAM
Data ROM Size: 128 KB
Data ROM Type: EEPROM
Qualification: AEC-Q100
ADC Resolution: 10 bit, 12 bit
Data Bus Width: 32 bit
Interface Type: CAN, I2C, SPI, UART
Mounting Style: SMD/SMT
Watchdog Timers: Watchdog Timer
Processor Series: e200z4
Moisture Sensitive: Yes
Program Memory Size: 4 MB
Program Memory Type: Flash
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 3 V
Maximum Clock Frequency: 160 MHz
Operating Supply Voltage: 3 V to 5.5 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
