Frequency
Range: 25MHz~3GHz
Resolution: 3Hz
Reference Frequency
Reference Output: Frequency: 10MHz Level: >0dBm
Port: BNC connector
Reference Input:Frequency: 10MHz Power: -3~+7dBm
Input Port: BNC connector
Impedance(nominal): 50Ω
Phase Noise: -90dBc~-115dBc Offset 20kHz
Spurious
Harmonic: <-35dBc (Power: ≤-5dBm)
Non-harmonic: <-60dBc
Power
Power Range: -60dBm~+10dBm
Resolution: 0.25dB
Accuracy
±(1.0+2% absolute value of setting value)dB (output frequency 25MHz~2250MHz)
±(1.0+4% absolute value of setting value)dB(output frequency 2200MHz~3000MHz)
Input SWR : <1.5 typical value
RF Output
Terminal: N type
Output Impedance: 50Ω
Pulse Modulation
Break-make Ratio: > 80dB
Rising/Falling Edge: < 100ns
Pulse Width: 0.25s Min.
Pulse Period: 0.5s Min.
Sweep
Frequency Sweep: Sweep Mode: Linear Min. Step: 3Hz
Power Sweep: Sweep Mode: Linear Min. Step: 0.25dBm
General Characteristics
Power: AC 100V~240V, 50/60Hz, 50VA Max
Dimension & Weight: 386mm×256mm×123mm, <5kg

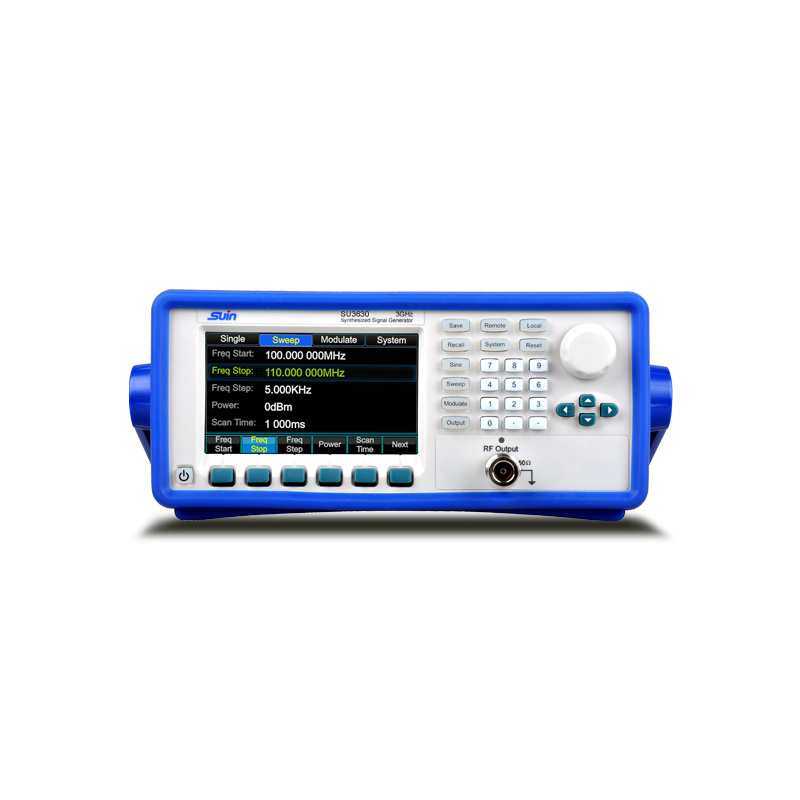

SU3630 Synthesized Signal Generator Standard Accessories
Power Cord: 1pcs
CD(Software+User's Guide): 1pcs
SU3630 Synthesized Signal Generator Features
Simple and easy to operate
Up to -115dBc phase noise
Up to +13dBm output power
Flexible frequency and amplitude sweep function
Pulse modulation function
Standard interface of USB device and RS232
